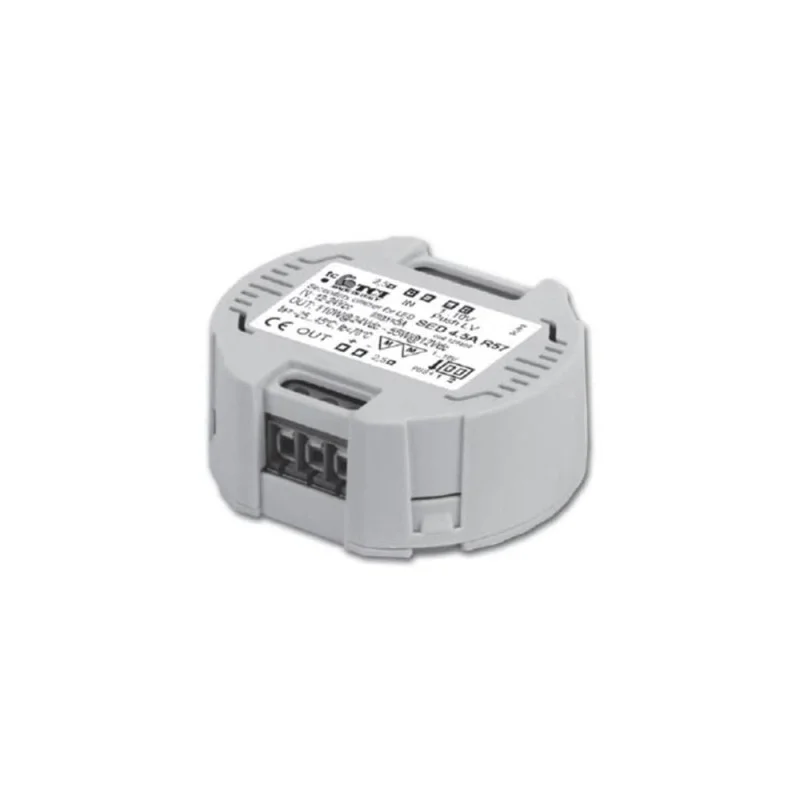

TCI Low voltage 12-24V dimmer PWM for LED strip

Product Information:

Operation Mode

• Light regulation 0/0,5 - 100 % by means of PUSH LV function, 0/1...10 V interface (I=0,4 mA) or 10 Kohm potentiometer.

• Output dimmed by PWM 250 Hz.

• Dimming mode selection (1...10 V or Push) by dip-switch below the cover.

• Light regulation 0/0,5 - 100 % by means of PUSH function (secondary, push button 24 V):

- a short push to turn on and off;

- a longer push to increase or decrease light intensity;

- regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and give the desired command again;

- dimming level memory at supply restore.

• Maximum length of the cable, from push buttom to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 100 - 240 V mains cable.

• ATTENTION: only use normally open push buttons with no incorporated warning light.

• Provided with dimming terminal connection with a 0/1...10 Vdc electronic potentiometer (0/1...10 V local dimming, with insulation according to standards of final application).
