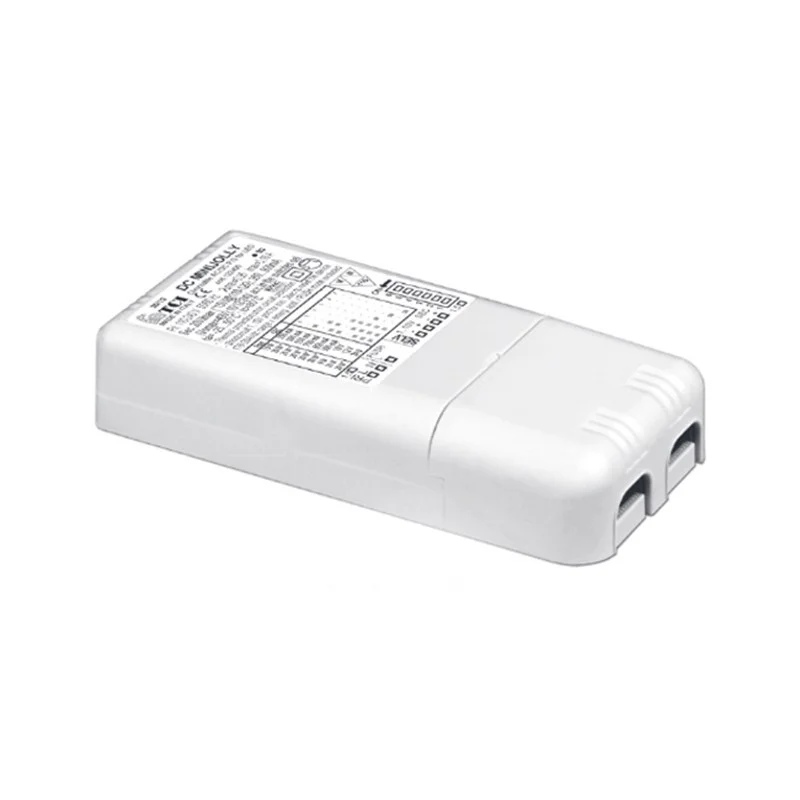

TCI LED Driver DC MINI JOLLY MD 20 TRAILING EDGE-LEADING EDGE Dimmable

Product Information:

Nominal voltage: 220-240V
Dimensions 110x52x22 mm

Features

. Multipower driver supplied with dip-switch for the selection of the output current.
. IP20 independent driver, for indoor use .
. Class II protection against electric shock for direct or indirect contact.
. It can be used for lighting equipment in protection class I and II .
. Active Power Factor Corrector.
. Current regulation ±5 % including temperature variations.
. Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 / AWG15).
. Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
. Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
. Thermal protection = C.5.a.

Dip-switch selection of the output current Variants:

12W  15...48V max 250 mA cost.

14W  15...48V max 300 mA cost.

17W  10...48V max 350 mA cost.

19W  5...48V max 400 mA cost.

20W  5...44V max 450 mA cost.

20W  5...40V max 500 mA cost.

20W  5...36V max 550 mA cost.

20W  5...33V max 600 mA cost.

20W  5...31V max 650 mA cost.

20W  5...29V max 700 mA cost.

20W  5...27V max 750 mA cost.

20W  5...25V max 800 mA cost.

20W  5...23V max 850 mA cost.

20W  5...22V max 900 mA cost.

20W  24V cost. 900 mA max

11W  12V cost. 830 mA max
