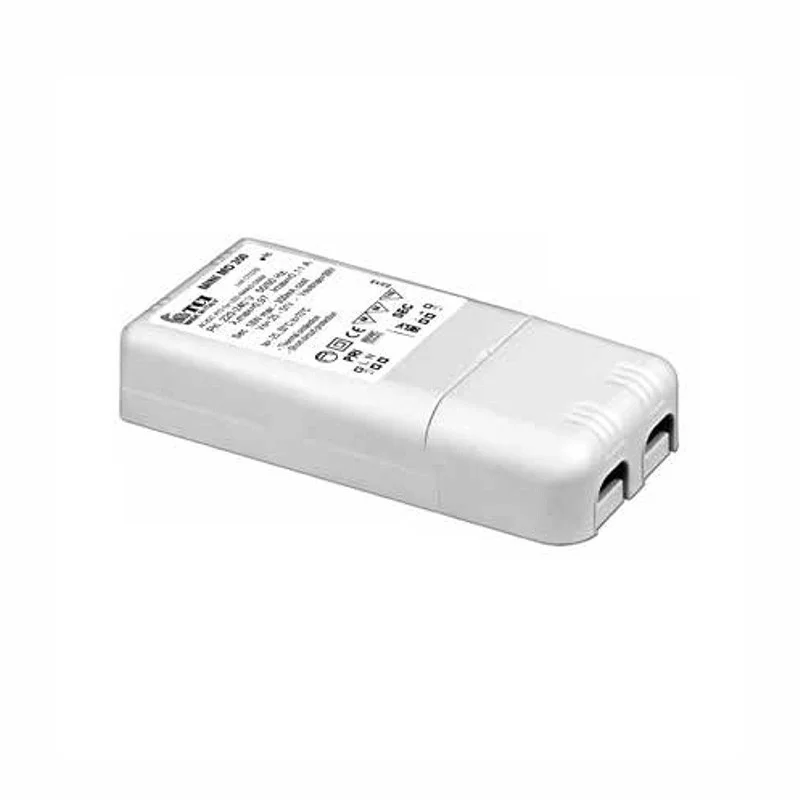

TCI MINI MD TRAILING EDGE-LEADING EDGE 20W 500mA DC Direct Current Dimmable Electronic Driver

The TCI MINI MD Trailing Edge-Leading Edge 20W 500mA is a dimmable direct current electronic driver designed for professional LED lighting installations. This compact TCI driver, reference 127032, supports both Trailing Edge and Leading Edge dimming systems, ensuring broad compatibility with the most common lighting control solutions.

With its slim dimensions of 108 x 52 x 22 mm, the TCI MINI MD integrates seamlessly into lighting fixtures where space is at a premium, making it an ideal choice for residential and commercial projects requiring precise and quiet light control.

Key Technical Specifications

The driver delivers a constant output current of 500mA at a maximum output power of 21W, ensuring stable performance regardless of load variations. The rated input voltage ranges from 220 to 240V AC. Equipped with an active Power Factor Corrector (PFC), it maintains current regulation within ±5%, including temperature variations. The IP20 protection rating makes it suitable for indoor use. Input and output terminals are located on the same side, accepting cable cross-sections up to 1.5 mm² / AWG15. The housing is made of PVC and can be secured with slot-mounted screws.

Safety and Protections

The driver is rated Class II against electric shock for both direct and indirect contact. It features built-in protection against overheating, short circuits, mains voltage spikes and overloads, with thermal protection compliant with standard C.5.a.

Applications

The TCI MINI MD is compatible with lighting equipment in protection class I and II, making it ideal for recessed LED luminaires, spotlights and decorative design fixtures that demand smooth and accurate dimming performance.
