QLT elettronic transformer T150 50-150W 12V a batta tensione

    QLT elettronic transformer T150 50-150W 12V a batta tensione Dimmable

    $34.69

    More buy more save

    For 10 products spend per unit

    The QLT T150 electronic transformer powers LED or halogen lamps at 12V AC with adjustable output from 50 to 150W and phase-cut dimmer compatibility.

    Read more ... arrow_drop_down
    local_shipping
    Not availableinfo

    Quantity

    Description

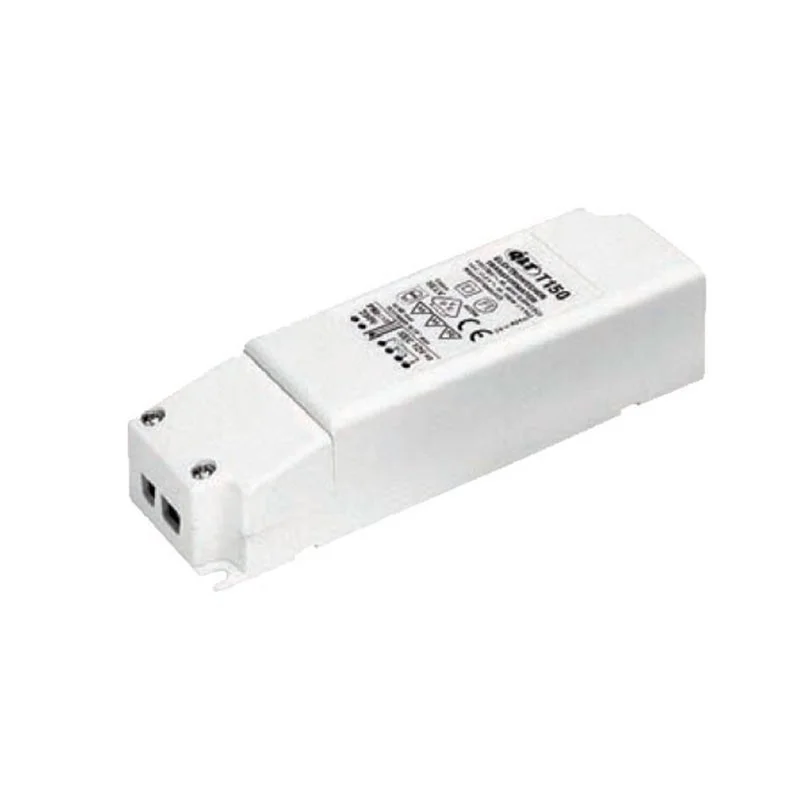

    The QLT T150 is a dimmable electronic transformer by QLT, designed to power LED or halogen lamps at low voltage. Built in PVC with an IP20 protection rating, it accepts an input voltage of 220-240V and delivers a stable output at 12V AC, with adjustable power ranging from 50 to 150W, making it well suited for integration into low-voltage lighting installations.

    Its compatibility with both trailing edge (IGBT) and leading edge (TRIAC) phase-cut dimmers for inductive loads enables precise and flexible control over light intensity, adapting to a wide range of lighting scenarios. The unit features protection against mains voltage spikes and self-resetting progressive thermal protection (NTC). The T150 model includes a double output terminal block with terminal cover and cable clamp. Two additional variants are available: the T.../K with self-resetting electronic protection against prolonged short circuits on the secondary, and the T.../KX with protection against permanent short circuits. The compact dimensions of 144 x 43 x 35 mm allow straightforward installation even in confined spaces.

    For dimensions, technical specifications and further product information, please refer to the attached PDFs.

    QLT
    Guaranteed Original Product

    Data sheet

    Barcode
    8058774346758
    Reference
    A10T1500000B
    Input voltage
    220-240 V
    Output voltage
    12V AC
    Depth in mm
    35
    Width in mm
    43
    Length in mm
    144
    Degree of protection
    IP20
    Material
    Pvc
    Light source
    LED OR HALOGEN
    Adjustable power
    with TRAILING EDGE-LEADING EDGE
    Power output in watts
    50-150w
    Download
    picture_as_pdf Scheda tecnica
    Warranty verified 2-year warranty from date of purchase
    Assistance

    Do you have a question?

    Our team usually replies within 2 business hours.

    Hours
    Mon-Fri 9:00-13:00
    14:30-18:30
    Typical reply within 2 hours
    Read the FAQ

    Fill out the form below. We will reply to you by email as soon as possible.

    Question about the product

    * Required fields
    Jack 2023-10-06 22:08:42

    Potete consigliarmi quale dimmer utilizzare per questo alimentatore? Vorrei un potenziometro e il più piccolo possibile. (translated by google, you can write answer in english)

    Answer

    Salve ,

    il prodotto è fuori produzione spiacenti

    lorenzo 2018-08-05 21:50:35

    salve in uscita ci sono 4 morsetti, dallo schema si capisce che sono 2 coppie. vorrei capire se la potenza va divisa per 2 (quindi 75 w + 75 w) o sono entrambe da 150 (150 w +150 w)? certo di una vostra risposta ringrazio e saluto

    Answer

    Buongiorno ,

    Il prodotto ha due uscite ma sono due uscite in parallelo quindi la potenza è di 150w , su una può collegare 10w e sull' altra 140w per esempio , l 'importante e non superare un carico su entrambe di 150w .

    Distinti saluti Diffusione Luce s.r.l.

    ALDO 2018-05-22 11:19:49

    montaggio all'interno di una coppa al soffitto ; prego comunicare le tre dimensioni grazie

    Answer

    Gentile Sign. Aldo ,

    Le misure sono ora inserite.

    Grazie per la segnalazione .

    Distinti saluti  Diffusione Luce s.r.l.
