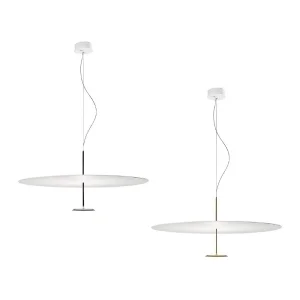

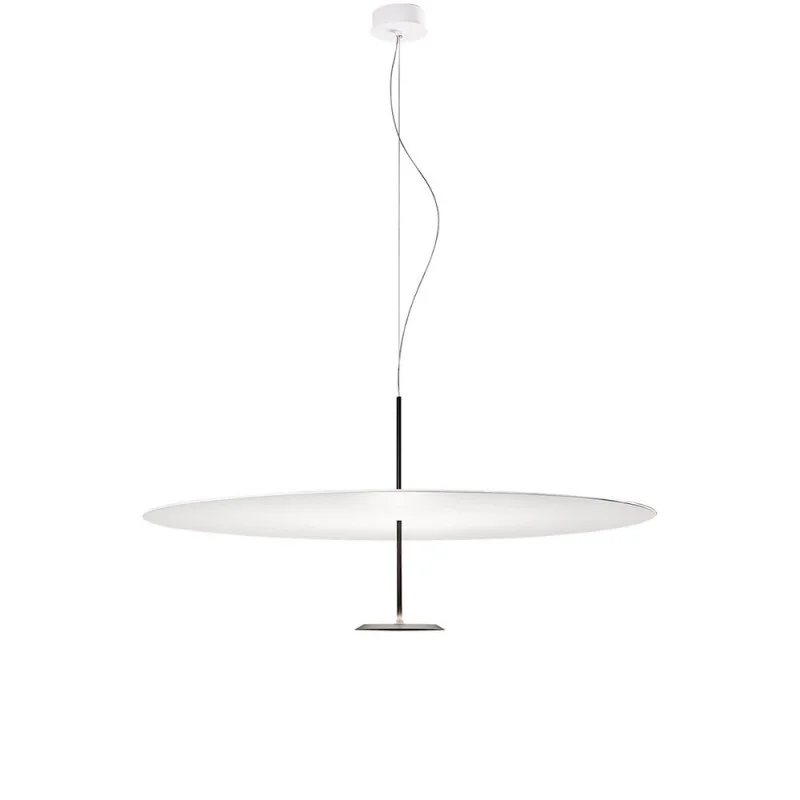

Lumina DOT 800 Thermodynamic LED Dimmable Suspension Lamp

The DOT suspension lamp was born as an idea to create a 'disc of light', a minimalist suspension with a floating disc of light. It is made up of two parallel discs joined by a thin metal rod and its shape hides an inherent complexity that pushes the boundaries of existing technology. The smaller disc, made of aluminum, contains a LED circuit arranged in a ring that projects light upwards onto the larger disc that acts as a reflector. The light then bounces off the latter and illuminates a large area in a pleasantly indirect way, guaranteeing high visual comfort. A specially designed heat-pipe transfers the heat generated by the light source to the heat sink, placed inside the reflector, which leads to an innovative approach to the technology of optics and thermodynamics.

The powerful, indirect and bright lighting in a warm white color and a high visual comfort, make the DOT suspension lamp the perfect source of light above a dining table, a meeting room or in all those places that need a minimal touch but very technological.

* If you wish to adjust the light intensity via the 0-10V system or phase cut, indicate this change when ordering in the message section.

• Materials: Aluminum, Steel, Metal
• Source: 39W LED (integrated)
• Bulb included
• Light temperature: 2700K / 3000K
• Luminous flux: 1690 lm / 1780 lm
• Dimmable - DALI
• Emission: Indirect
• System: Thermodynamic with Heat-Pipe
• For indoor: IP20
• Color rendering: CRI83
• Canopy included
• Height adjustable: max 3000 mm
• Decentralization kit included
• Reflector: Matt white painted steel
• Finishes available: Anodized Black, Anodized Brass

Dimensions

• Smaller disc diameter: D. 50 mm
• Larger disc diameter: D. 800 mm
• Low stem height: 180 mm
• High stem height: 155 mm
• Canopy: D. 75 x 60 mm
