On sale!
Reduced price

Flos Battery Trim Small 4L Square Adjustable Recessed LED

Flos Battery Trim Small 4L Square Adjustable Recessed LED Spotlight

Reference 04.6486.20B

Brand Flos Architectural

$1,025.70 Save 15%

instead of $1,206.70

The product can be ordered

More buy more save :

If you buy 5 products the price is

Battery Trim Small 4L Square - Optic Wide Flood, adjustable LED recessed ceiling spotlight, for indoor use. Available in 3 different finishes. Accessories available upon request.

Select Color

Matt White
Matt Black
Mercury

Quantity

local_shipping Shipped in 7-21 days

You can pay in installments with PAYPAL OR SCALAPAY

Description

Product Information:

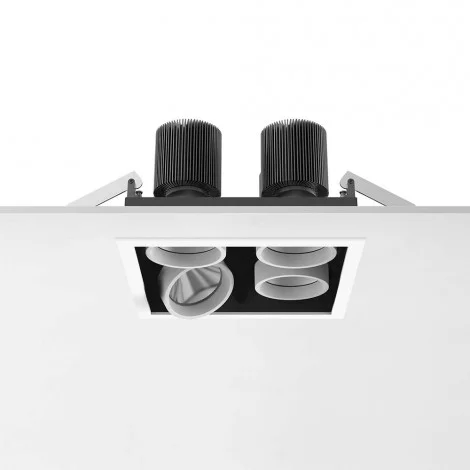

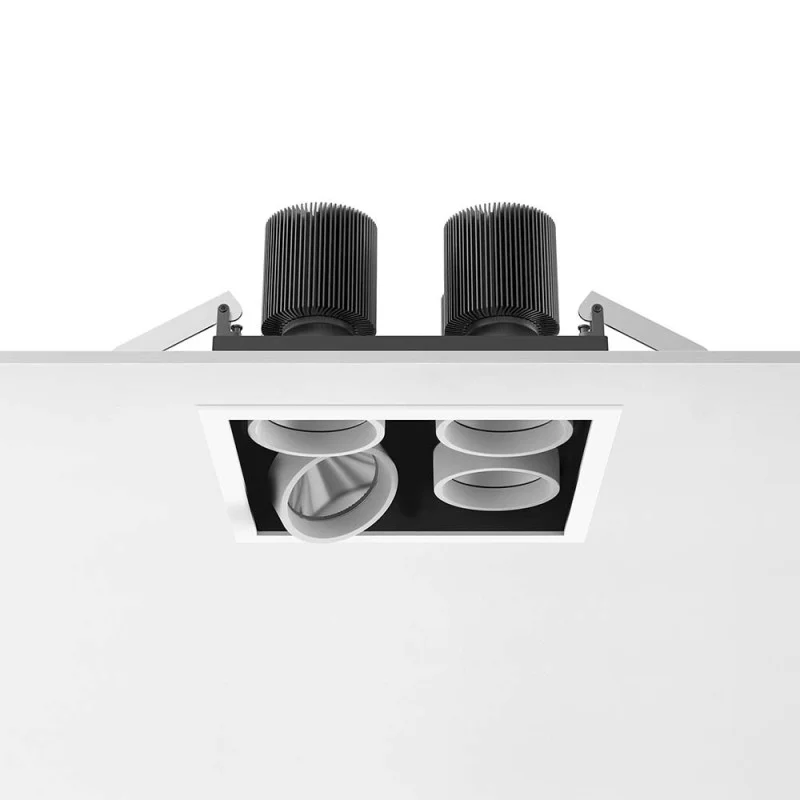

Battery Trim Small 4L Square is an adjustable square recessed spotlight, with frame, designed by F.A. Porsche for Flos, and is composed of an aluminum body containing four highly visual comfort optics, with a glossy finish. It is a luminaire for false ceilings with a thickness from 1 to 30mm, and is equipped with a "compass" orientation system that allows orientation up to 40° in all directions. Power sources are excluded but can be ordered separately. Battery is suitable for all types of environments both contract (hotels, restaurants, shops, offices) and domestic. It is also available in matt white, mercury, matt black finishes.

Light source: LED Array DC 4x 16.5W (integrated)
Light temperature: 3000K (warm light)
Luminous flux: 4x 2290 Lm
Optic type: Wide Flood - 44°
Rotation: 40° ("Compass" system)
Type of lighting: Symmetrical
DIMMABLE (Driver excluded)
Power sources: Excluded (One power source for each optic body)
Colors available: Matt White, Mercury, Matt Black
Steel brackets for installation

Dimensions

Spotlight width: 235x235 mm
Total height: 149 mm
Recessed hole: 225x225

NOTES:

- Colored filters are available on request (Honeycomb, Blue Filter, Sky Blue Filter, Amber Filter, Red Filter, Hot Light, Cold Light, Daylight, Neodimium).

- Battery Trim Small 4L Square is available in the version with Flood optic (29°), UPON REQUEST.

attach_file
Datasheet

Available versions

Color:

Matt White -

Matt Black -

Mercury -

100% original product by

Product Details

Data sheet

Reference: 04.6486.20B
Input voltage: 100-240 V
Degree of protection: IP20
Material: Aluminum
Light source: LED
Adjustable power: Dimmable
Watt power: 66 W
Luminous efficacy in lumens: 9160
Light Temperature: 3000 K Warm white
Number of light sources: 4
Beam angle: 44°
Weight in Kg: 2,3
Driver power supply: Without driver
Insulation class: Insulation class III
Mounting: Recessed
Total height in mm: 149
Input costant current: 500mA
Compatible current: EU-AUD-USA-UK-JAP
Color rendering index: CRI80
Optics: Adjustable
Light Emission: Symmetric

product accessories

-25% Reduced price On sale!

TCI Driver LED 110-240V DC JOLLY DALI 32W Dimmable Dali

Reference: 123424

Brand: TCI

TCI Driver LED DC JOLLY DALI 32W Dimmable Dali

Dali adjustable electronic ballast from 250mA to 700mA in constant current and 12V-24V direct current. Multi-power power supply equipped with dip-switch for output current selection.

$59.24

$78.99

Shipped in 1-2 days

-25% Reduced price On sale!

TCI MP 32 K2 Electronic Driver Multipower LED DC 100-264V 32W

Reference: 122200

Brand: TCI

TCI MP 32 K2 Electronic Driver Multipower 350-900mA for LED

LED multipower direct current electronic ballast with DIP SWITCH from 350 to 900mA in constant current, from 10 to 24V in constant voltage.

$36.46

$48.61

Shipped in 7-21 days

-25% Reduced price On sale!

TCI Professional 42 with DIP-SWITCH 13-42W DC Direct Current

Reference: 127484N

Brand: TCI

TCI Professional 42W Direct Current Electronic Driver

Electronic driver with DIP-SWITCH in direct current: (13W 300mA) (15W 350mA) (18W 400mA) (20W 450mA) (22W 500mA) (24W 550mA) (27W 600mA) (29W 650mA) (31W 700 mA) (32W 750 mA) (33W 800mA) (35W 850mA) (38W 900mA) (40W 950mA) (42W 1000mA) (42W 1050mA). Rated input voltage 220-240V.

$54.68

$72.91

Shipped in 1-2 days

-25% Reduced price On sale!

TCI LED Driver 110-240V DC MAXI JOLLY US DALI 60W 1-10V Push

Reference: 127413

Brand: TCI

TCI LED Driver DC MAXI JOLLY US DALI 60W 1-10V Push Dimmable

Electronic power supply adjustable in constant current from 350mA to 1.05A. Multipower supply equipped with dip-switch with the selection of the output current. IP20 independent power supply, for indoor use. Possibility to adjust the light intensity through the DALI, 0-10V, 1-10V or Push system. Nominal voltage 110-127V or 220-240V. Dimensions...

$72.91

$97.22

Shipped in 1-2 days

On sale!

Reference: A40PDMC1000B

Brand: QLT QUALITRON

QLT Constant Multi-Current LED Driver Dimmable 1-10V With Low Voltage Button

Dimmable multipower power supply PDMC1 Driver for LEDs in constant current from 100mA to 700mA for a maximum of 13W (230V) and 9W (110V). Possibility to adjust the light intensity through 1-10V system with the use of a simple NA (Normally Open) button.

$40.53

Shipped in 1-2 days

-25% Reduced price On sale!

TCI LED Driver 110-240V DC MINI JOLLY 20 1-10V e PUSH Dimmable Dimmer TCI - 1

Reference: 125400

Brand: TCI

TCI LED Driver DC MINI JOLLY 20 1-10V PUSH Dimmable

Electronic power supply adjustable in constant current from 350mA to 900mA. Multipower supply with dip-switch for selection of the output current. IP20 power supply, for indoor use. Possibility to adjust the light intensity through the 1-10V and PUSH system. Voltage 110-127V or 220-240V.

$41.01

$54.68

Shipped in 1-2 days

-25% Reduced price On sale!

TCI LED Driver 220-240V DC MINI JOLLY MD 20 TRAILING

Reference: 127556

Brand: TCI

TCI LED Driver DC MINI JOLLY MD 20 TRAILING EDGE-LEADING EDGE Dimmable

Electronic power supply adjustable from 250mA to 900mA in constant current and 12V-24V direct current. Multipower supply equipped with dip-switch with the selection of the output current. IP20 independent power supply, for indoor use. Possibility to adjust the light intensity through the IGBT-TRIAC (TRAILING EDGE-LEADING EDGE) system. Nominal voltage...

$41.01

$54.68

Shipped in 1-2 days

-25% Reduced price On sale!

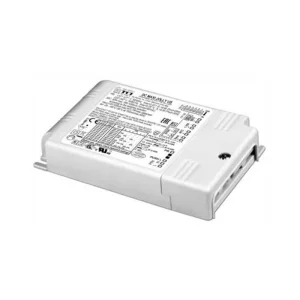

TCI LED Driver 110-240V DC MAXI JOLLY US 60W 1-10V Push
