QLT Constant Multi-Current LED Driver Dimmable 1-10V With Low Voltage Button

A40PDMC1000B

Trustpilot
$42.19
24 / 48 hours

More buy more save :

If you buy 5 products the price is
If you buy 10 products the price is
If you buy 20 products the price is

Dimmable multipower power supply PDMC1 Driver for LEDs in constant current from 100mA to 700mA for a maximum of 13W (230V) and 9W (110V). Possibility to adjust the light intensity through 1-10V system with the use of a simple NA (Normally Open) button.

Read more ...
Quantity
local_shipping Shipped in 1-2 days
check
In stock
17 Items


payments You can pay in installments with PAYPAL OR SCALAPAY
Description
Product Information:

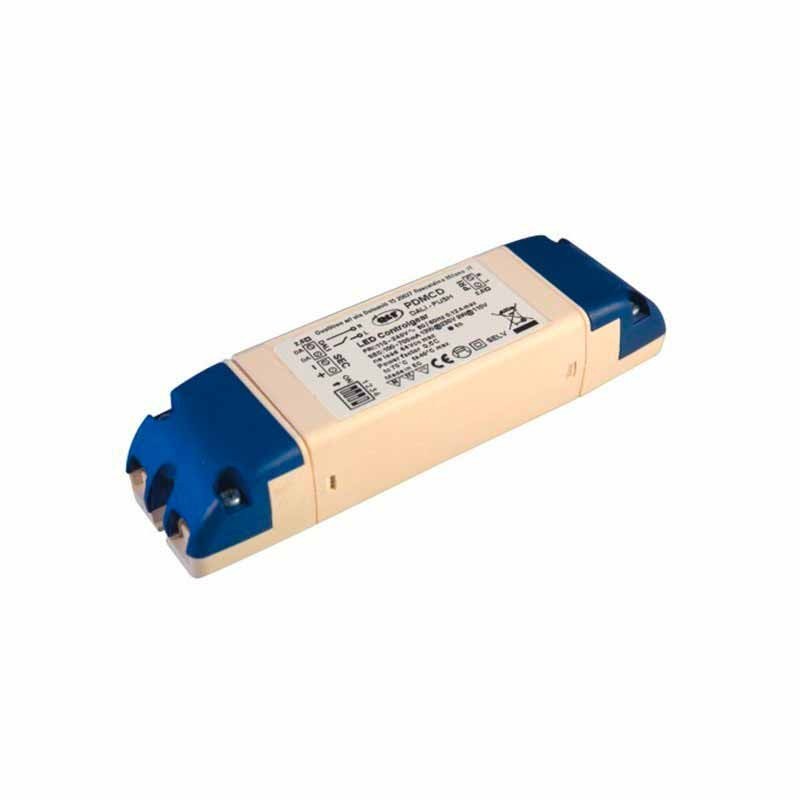

1-10V multi-current dimmable LED Controlgear power supply driver.

. Independent power supply - IP20 - Class II of insulation
. Constant current output from 100 to 700mA, programmable with DIP-switches (see diagram)
. A40PDMC1000B: 1-10V system
. Self-restoring protection against overheating, against the open circuit and short-circuits on the secondary.
. Power supply in 100V-250V / AC - Stabilized output

Currents selectable via micro switches:
100mA - 150mA - 200mA - 250mA - 300mA - 350mA - 400mA - 450mA - 500mA - 550mA - 600mA - 650mA - 700mA

download
Datasheet
Warranty 2 Years
100% original product by

Details:
check
In stock
17 Items

Data sheet

Barcode:
8053306654042
Reference
A40PDMC1000B
Input voltage
100-240 V
Depth in mm
18,5
Width in mm
40
Length in mm
138
Degree of protection
IP20
Material
Pvc
Light source
LED
Adjustable power
with 1/10 volt system
Control system
Button
Constant current output
100~700mA
Insulation class
Insulation class II
Compatible current
EU-AUD-USA-UK-JAP
