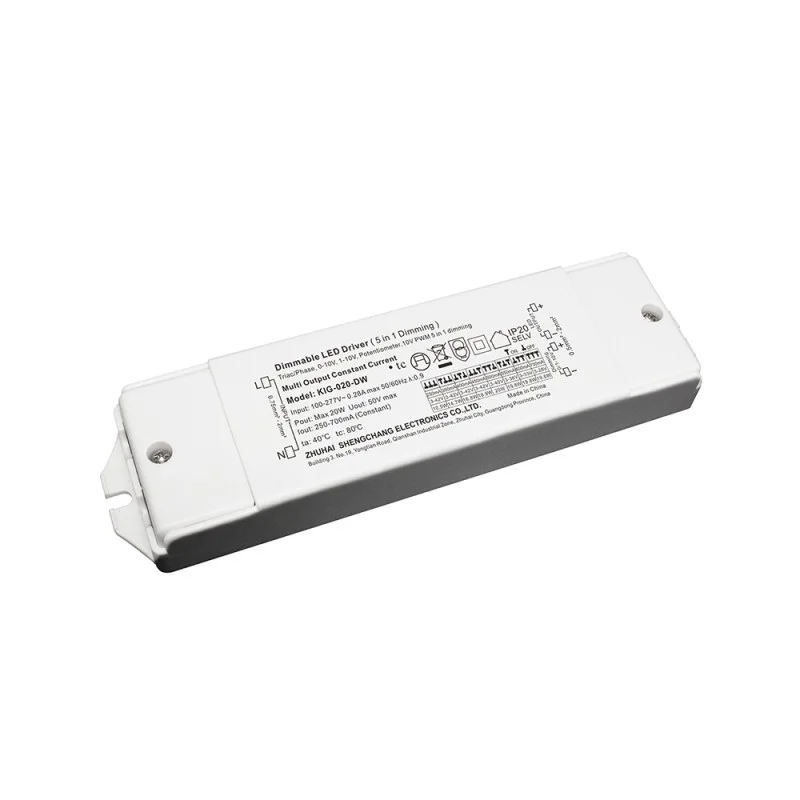

Constant current driver 250-700mA 20W dimmable

Brand :

Select Version

200-240 VAC
100-277 VAC

$34.65

24 / 48 hours

Constant current LED driver, 20w multi-current at 700mA max, dimmable Triac ELV, 0-10V, 1-10V, potentiometer, 10V PWM. Available at 200-240V and 100-277V. Dimensions: 159.5x43x20mm.

payments Secure payment:

delivery_truck_speed Delivery Information:

Fast shipping within 24-48 hours for products marked "Shipped in 1-2 days."

back_to_tab Product returns:

Returns must be made within 30 days of the delivery date.

Description
Product Details

Description

Constant current LED driver 20W 700mA max

Characteristics:

Output voltage: 3-42V
Insulation class: II
Protection: IP 20
Power: 20W
Maximum constant current: 700mA
Operating temperature: ta 40° - tc 80°
Dimensions: 159.5x43x20mm
Dimmable Triac ELV - 0-10V - 1-10V - Potentiometer - 10V PWM
Certificate: ENEC Pending-SAA-CE-RoH-REAC

- 250 mA costante - 3-42 Vdc - 20W

- 350 mA costante - 3-42 Vdc - 20W

- 400 mA costante - 3-42 Vdc - 20W

- 450 mA costante - 3-42 Vdc - 20W

- 500 mA costante - 3-40 Vdc - 20W

- 550 mA costante - 3-36 Vdc - 20W

- 600 mA costante - 3-33 Vdc - 20W

- 700 mA costante - 3-29 Vdc - 20W

Manufacturer : SCPOWER

check_circle

In stock

In store we have 13 Items

Data sheet :

ean13: 2000000002354
Reference: KIG-020-DW
Input voltage: 220-240 V
Input voltage: 100-240 V
Depth in mm: 20
Width in mm: 43
Length in mm: 159.5
Degree of protection: IP20
Material: Plastic
With switch: No
Constant current output: 250~700mA
Power output in watts: 20 w
Compatible voltage: EU-AUD-USA-UK-JAP

Warranty :

2-year warranty from date of purchase
