Scpower CC LED Driver 10W 100–450mA Dimmable

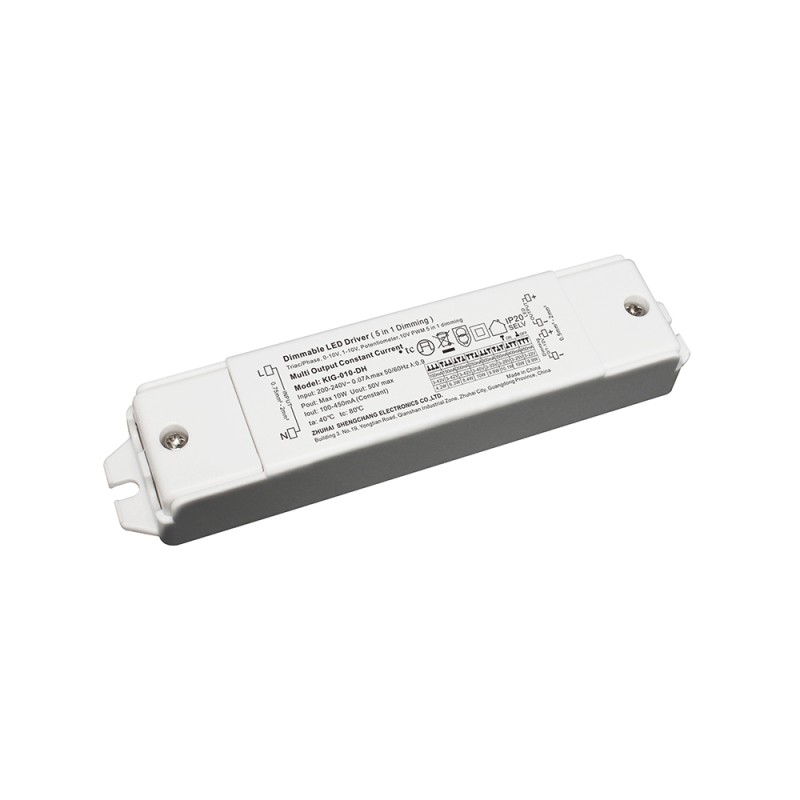

The Scpower KIG-010 is a 10W constant current LED driver by SCPOWER, designed to deliver precise and stable power supply to LED light sources in both professional and residential applications. Built in plastic with compact dimensions of 135×30×20 mm, it stands out for its versatility: the driver supports selectable output currents from 100 mA to 450 mA, adapting to different LED configurations with output voltages ranging from 3 to 42 Vdc depending on the selected current setting.

This driver is especially suited for installations requiring accurate dimming control: its multi-protocol dimmability allows regulation via Triac, 0-10V, 1-10V, potentiometer and 10V PWM, ensuring broad compatibility with the most widely used lighting control systems. The input voltage range of 100–240 V makes it compatible with power grids across EU, USA, Australia, UK and Japan. With an IP20 protection rating, it is designed for indoor installations, and features no integrated switch. Operating temperatures (ta 40°C – tc 80°C) and insulation class II round out the technical profile of a product certified CE, SAA, RoHS and REACH.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
