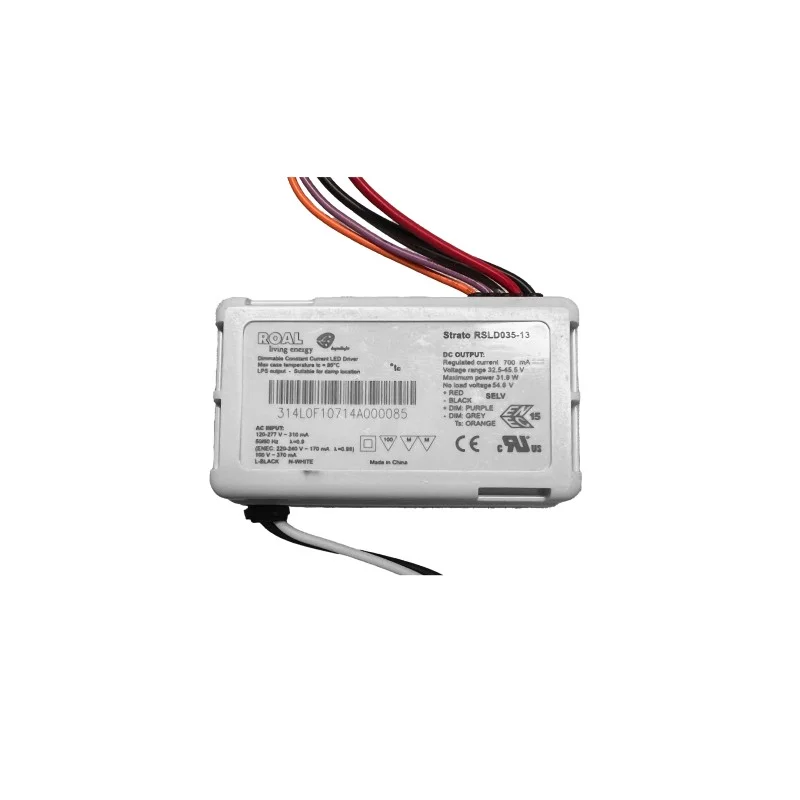

Roal Power supply 31.9W 700mA constant current 0-10V dimmable
  • Roal Power supply 31.9W 700mA constant current 0-10V dimmable
  • Roal Power supply 31.9W 700mA constant current 0-10V dimmable

Power supply 31.9W 700mA constant current 0-10V dimmable

₩176,955
24 / 48 hours

Constant current LED power supply 700 mA 31.9W (min 32.5V, max 45.5V), input voltage 100-240 Volt. Dimmable via 0-10 / 1-10V system

Read more ... arrow_drop_down
1 Item
local_shipping
Shipped in 1-2 days
More information about shipping

Quantity

Description

STRATO switch mode driver technology is designed to generate one constant current output 700mA from a wide range AC input. The size and performance of these products make them the ideal choice for LED lighting applications.

• Wide Range Input: 120, 240, or 277 VAC

• Constant Current Output for Powering LEDs Directly

• High Efficiency ~90%

• Compact Design

• Adjustable Output Current Settings

• Dimmable with (0-10VDC, 1-10VDC) Input

• Temperature Protection for LEDs

• Convection Cooled

• Long Life

• Wide Temperature Range

• ROHS Compliant

Generico
Guaranteed Original Product
1 Item

Data sheet

Reference
RSLD035-13
Input voltage
100-240 V
Output voltage
32.5-45.5V
Depth in mm
27
Width in mm
70
Length in mm
40
Degree of protection
IP20
Material
Pvc
Adjustable power
with 1/10 volt system
Constant current output
700mA
Power output in watts
31.9W
Insulation class
Insulation class II
Compatible voltage
EU-AUD-USA-UK-JAP
Download
picture_as_pdf Scheda tecnica
Warranty verified 2-year warranty from date of purchase
