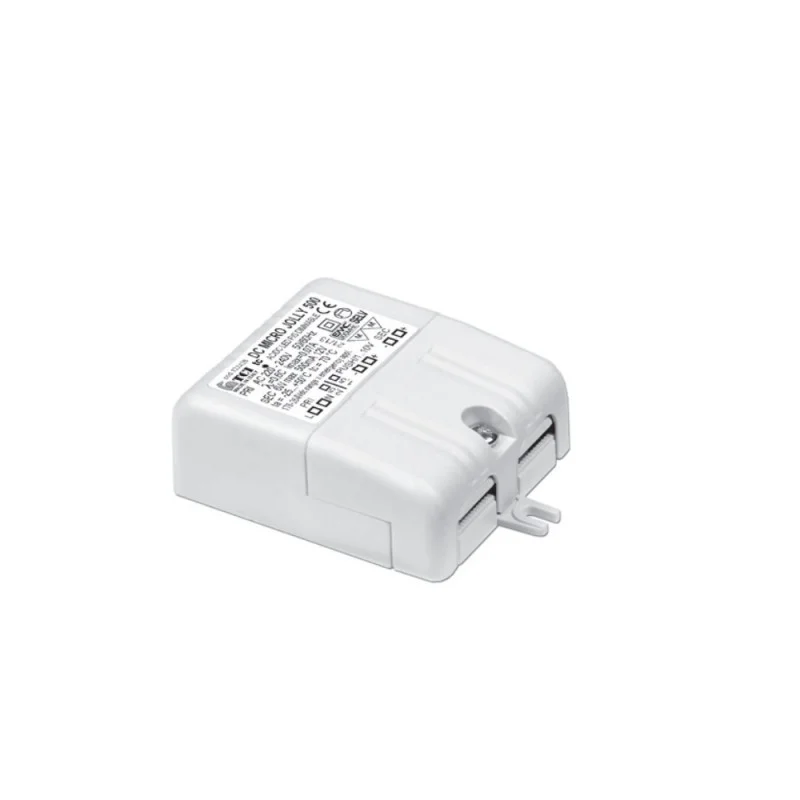

TCI Driver LED Micro Jolly 6w 500mA 1-10V

Product Information:

Features: IP20 independent driver, for indoor use. Suitable for professional luminaries for stage lighting and studios or similar. Class II protection against electric shock for direct or indirect contact. Current regulation ±5 % including temperature variations. Supplied with terminal cover and cable retainer.

Input and output terminal blocks on the same side, terminal cross section:

- 2.5mm2 / AWG13 on primary;

- 1 mm2 / AWG17 on secondary;

- 1mm2 / AWG17 on regulation.

Clamping screws on primary and secondary circuits for cables with diameter: min. 3mm - max. 8mm.

Protections:

- against overheating and short circuits;

- against mains voltage spikes;

- against overloads.

Thermal protection = C.5.a.

Operation Mode:Light regulation 0/0,5 - 100 % by means of PUSH LV function, 0/1...10 V interface (I<2 mA) or 100 Kohm potentiometer. Dimming mode selection (1...10 V or Push) by Jumper below the cover.

Light regulation 0/0,5 - 100 % by means of PUSH function (secondary, push button 24 V):

- a short push to turn on and off;

- a longer push to increase or decrease light intensity;

- regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and give

 the desired command again;

- dimming level memory at supply restore.

Maximum length of the cable, from push buttom to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 100 - 240 V mains cable. ATTENTION: only use normally open push buttons with no incorporated warning light. Specific dimming terminal connection with a 0/1...10 Vdc electronic potentiometer (0/1…10 V local dimming, double insulation required for external connection).

-6W out - 2...12V out - 500 mA

For more information, see the attached PDF.
