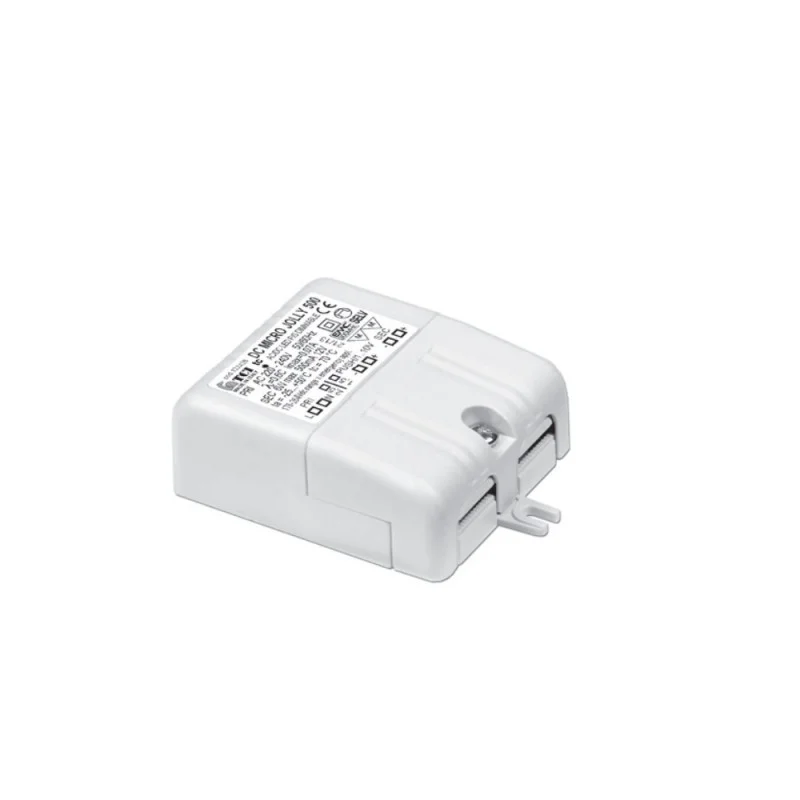

TCI Driver LED Micro Jolly 6w 350mA 1-10V

IP20 independent driver, for indoor use. Suitable for professional luminaries for stage lighting and studios or similar. Class II protection against electric shock for direct or indirect contact. Current regulation ±5 % including temperature variations. Supplied with terminal cover and cable retainer.

Dimensions: 60X50X22mm

Input and output terminal blocks on the same side, terminal cross section:

- 2.5mm2 / AWG13 on primary;

- 1 mm2 / AWG17 on secondary;

- 1mm2 / AWG17 on regulation.

Clamping screws on primary and secondary circuits for cables with diameter: min. 3mm - max. 8mm.

Protections:

- against overheating and short circuits;

- against mains voltage spikes;

- against overloads.

Thermal protection = C.5.a.

Operation Mode:Light regulation 0/0,5 - 100 % by means of PUSH LV function, 0/1...10 V interface (I<2 mA) or 100 Kohm potentiometer. Dimming mode selection (1...10 V or Push) by Jumper below the cover.

Light regulation 0/0,5 - 100 % by means of PUSH function (secondary, push button 24 V):

- a short push to turn on and off;

- a longer push to increase or decrease light intensity;

- regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and give

 the desired command again;

- dimming level memory at supply restore.

Maximum length of the cable, from push buttom to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 100 - 240 V mains cable. ATTENTION: only use normally open push buttons with no incorporated warning light. Specific dimming terminal connection with a 0/1...10 Vdc electronic potentiometer (0/1…10 V local dimming, double insulation required for external connection).

-6W out - 2...18V out - 350 mA
