I need to control the qlt dimmable interface dali 1 300hz 12a remotely with either rf or wifi. can you tell me what to buy or the dimmer that will work with this system. it has the meanwell lrs-150 watt 12.5a driver thanks

Hi Bruce , dimmable interface is controllable with Dali system or 1/10v, it is not possible to control it with WiFi . If you want we have another system .

On sale!

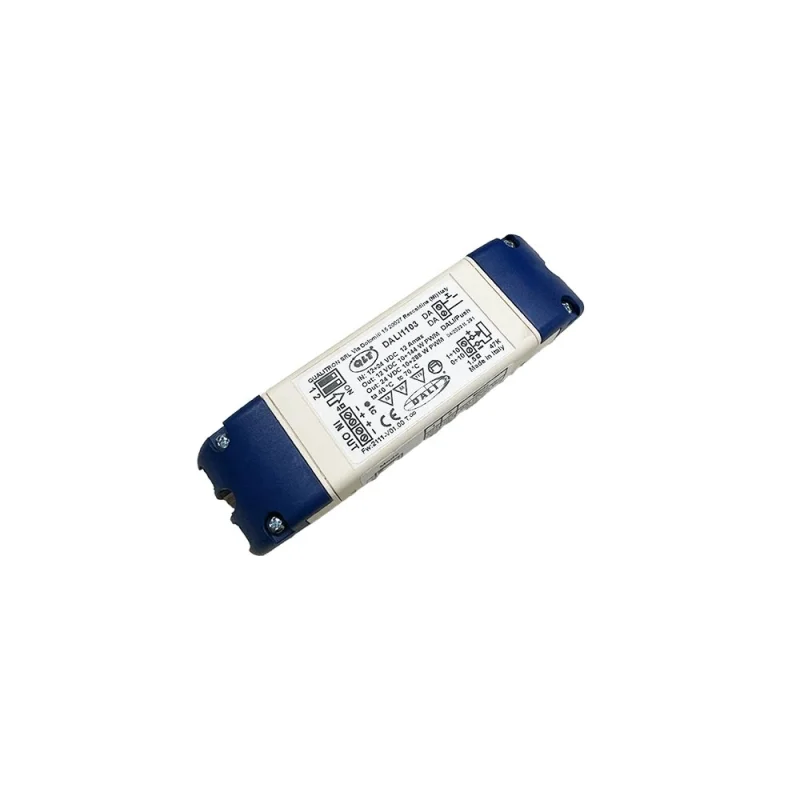

QLT Dimmable Interface DALI / 1-10V 12-24V 144-288W Dimmable

QLT Dimmable Interface DALI / 1-10V 12-24V 144-288W Dimmable with low voltage push

Reference A40DALI110PB

Brand QLT QUALITRON

$40.00

24 / 48 hours

More buy more save :

If you buy 5 products the price is

If you buy 10 products the price is

If you buy 20 products the price is

Brightness controller with control DALI or 1..10V with low voltage push, For resistive loads up to 12A, Input 12V-24V/DC, Dimensions 138x40x28,5 mm,

Quantity

local_shipping Shipped in 1-2 days

In wharehose we have 7 Items

You can pay in installments with PAYPAL OR SCALAPAY

1 question about the product

Description

Tech specs pdf

Datasheet

Product Information:

Light Dimming by DALI or PUSH (jumper DALI/PUSH) or light dimming by 1..10V signal or potentiometer (jumper 1-10V ON)
Brightness controller with control 1..10V potentiometer and button
Imput 12V (MAX:144W) - 24V (MAX:188W) /DC
For resistive loads up to 12A
PWM 300Hz Output

Related articles to amplify the signal: PWMR

product accessories

On sale!

Qlt Amplifier Dimmer / RGB / CT 12-24V Line Repeater

Reference: A40PWMREP00B

Brand: QLT QUALITRON

Qlt Amplifier Dimmer / RGB / CT 12-24V Line Repeater

Amplifier PWMR or signal repeater for control unit with RGB, dimmer or color temperature signal. With a maximum output power of 288W at 12V and 576W at 24V.

$30.01

Shipped in 1-2 days

Product Details

100% original product by :

In wharehose we have 7 Items

Data sheet

Barcode:: 8058774345478
Reference: A40DALI110PB
Input voltage: 12-24 V DC
Depth in mm: 28,5
Width in mm: 40
Length in mm: 138
Degree of protection: IP20
Material: Pvc
Light source: LED
Adjustable power: with DALI system
Current carrying capacity: 12A
Power output in watts: 144-288w
Insulation class: Insulation class II
Compatible current: EU-AUD-USA-UK-JAP

Send questions

Send us your question

Bruce Lerman on 2018-09-03 08:52:20	Question: I need to control the qlt dimmable interface dali 1 300hz 12a remotely with either rf or wifi. can you tell me what to buy or the dimmer that will work with this system. it has the meanwell lrs-150 watt 12.5a driver thanks
	Answer: Hi Bruce , dimmable interface is controllable with Dali system or 1/10v, it is not possible to control it with WiFi . If you want we have another system .
