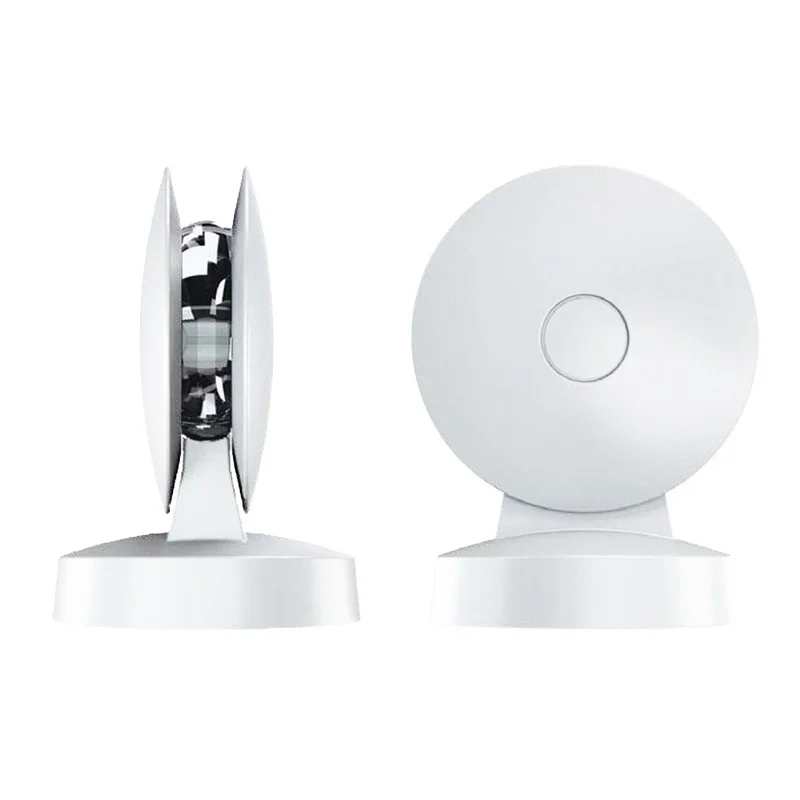

Wall or ceiling applique with a diameter of 89mm x 140mm with 360° blade light effect in 3000K warm light, without electronic transformer.Available in four different colors gray, white, black and rust brown.
Wall and ceiling-mounted luminaire, designed for use with LED lamps and a patented, 360° blade effect optic. The product consists of a support base and screen. The base is made of phosphocromatization treated, die-cast aluminium, with a double base coat and passivation at 120°C. It is coated with liquid acrylic paint, cured at 150 °C to guarantee a high level of weather and UV ray resistance. The optic is made of methacrylate. All the screws used are made of A2 stainless steel.
It needs a 350mA power supply to work properly.For outdoor use with an IP66 waterproof rating.
Installation: Wall and ceiling mounted by means of a stainless steel wall fixture plate.
Wiring: Product supplied with an outlet cable L=200mm. Electronic ballast to be ordered separately.
Notes: Compatible with the Master Pro DMX control system.
Indipendent driver - IP20 - Isolation's Class 2,
Output in steady voltage and current 350mA, 4.2W Max,
Self-resetting protection against overtemperatures, against open circuit and against output short circuits.,
Input voltage 190V · 265V/AC.
Electronic power supply adjustable in constant current from 350mA to 900mA. Multipower supply with dip-switch for selection of the output current. IP20 power supply, for indoor use. Possibility to adjust the light intensity through the 1-10V and PUSH system. Voltage 110-127V or 220-240V.
