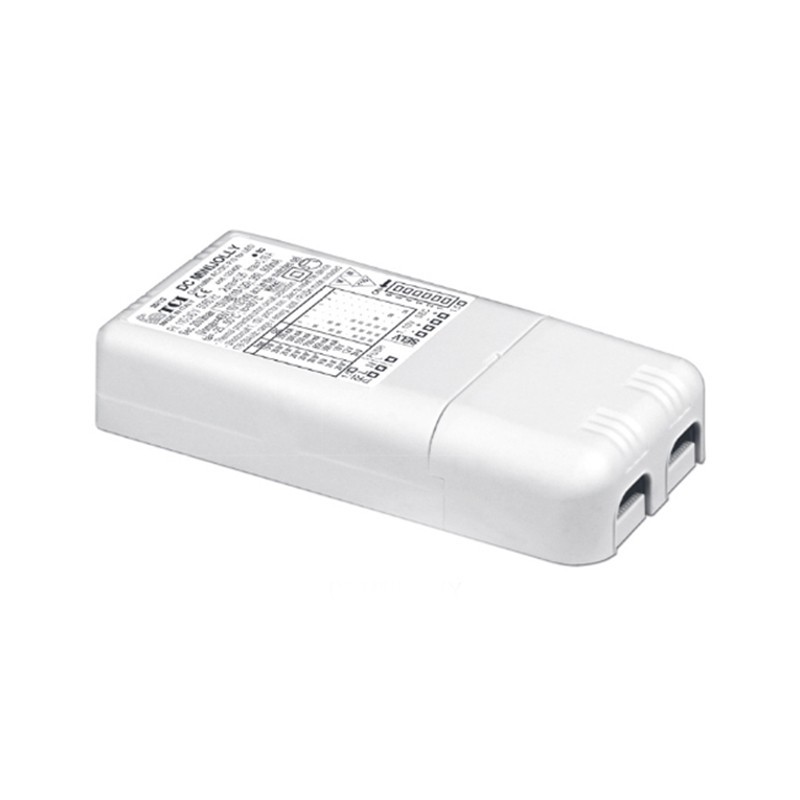

TCI LED Driver DC MINI JOLLY DALI 20 Dimmable

Product Information:

Multi-power supply with dip-switch for selecting output current. Independent IP20 power supply for indoor use. Protected in class II against electric shocks for direct and indirect contacts. Analog input (NTC) for thermal sensor connection. Regulated current + -5% including temperature variations. Input and output terminals on the same side (cable section up to 11.5 mm2). Strain relief on primary and secondary for cables with min. 3 max 8 mm. Thermal protections and short circuits, against network extra-voltages, against overloads.

Nominal voltage 110-127V - Nominal voltage 220-240V

dimensions 110x52x23 mm

Features

• Multi-power driver supplied with dip-switch for the selection of the output current.
• Replaces code 123403, 125403.
• IP20 independent driver, for indoor use.
• Class II protection against electric shock for direct or indirect contact.
• Driver for built-in use (DC MINI JOLLY DALI BI).
• It can be used for lighting equipment in protection class I and II (DC MINI JOLLY DALI BI).
• IP00, creepage distances and clearances rely on the final application according to IEC/EN 60598-1 (DC MINI JOLLY DALI BI).
• Active Power Factor Corrector.
• Analogical input (NTC) for thermal sensor connection.
• Current regulation ±5 % including temperature variations. .Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 ).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
• Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads.
• Thermal protection = C.5.a.
• Can be switched on and off on secondary circuit for power LED

Dip-switc selection of the output current Variants:

12W (12) 43V max. 250 mA cost.

17W (15) 43V max. 350 mA cost.

20W (15) 43V max. 400 mA cost.

20W (15) 43V max. 450 mA cost.

20W (15) 40V max. 500 mA cost.

20W (15) 36V max. 550 mA cost.

20W (15) 33V max. 600 mA cost.

20W (15) 28V max. 700 mA cost.

16W (15) 24 cost. 700 mA cost. (Constant voltage output)

* Power at 100-127V in brackets
