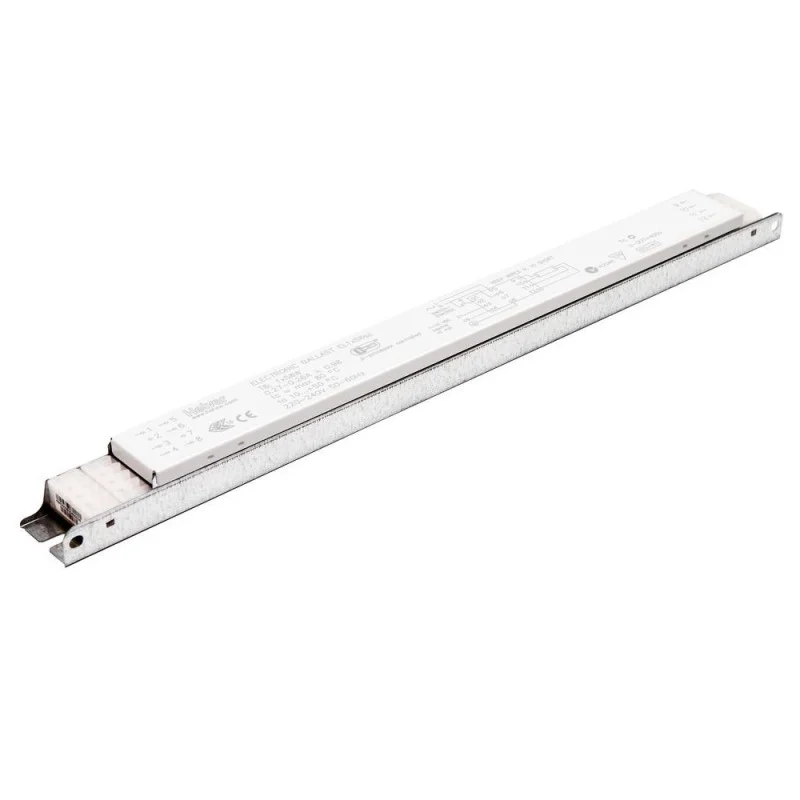

Helvar EL2 2X24w s electronic ballast

Helvar EL2 2X24W S is an electronic ballast by Helvar, reference EL2x24s, designed to drive two neon discharge light sources of the T5 TCL type, each rated at 24 W. The steel housing ensures durability and effective heat dissipation, while the compact dimensions of 360 × 30 × 21 mm allow straightforward installation inside ceiling fixtures and recessed luminaires.

The electronic system operates at an input voltage of 220–240 V, ensuring full compatibility with the standard European power grid. Thanks to its electronic technology, the ballast eliminates the flicker typical of traditional magnetic systems, extending lamp service life up to 50,000 hours and achieving energy efficiency class A2. The IP20 protection rating confirms suitability for installation in indoor, protected environments. A fixing length of 350 mm simplifies mounting on standard supports, making this component a reliable and precise solution for installers and designers working on professional lighting systems.
