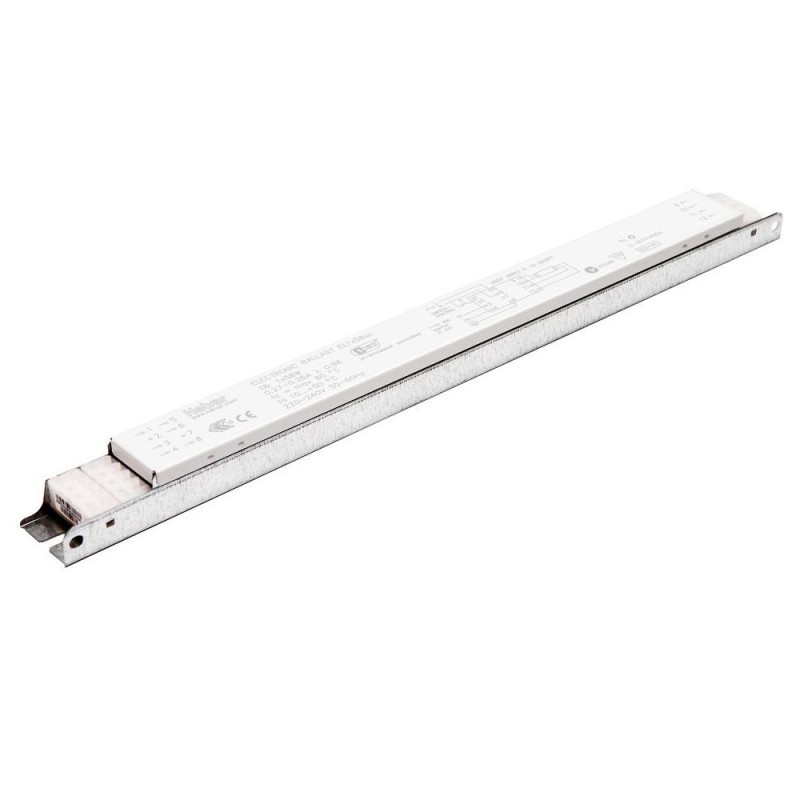

Helvar EL2 2X58 sc 1-10V dimmable electronic ballast

Helvar EL2 2X58 sc is a dimmable electronic ballast manufactured by Helvar, designed to drive two T8 neon discharge light sources rated at 58W each. Built in steel with an IP20 protection rating, this electronic ballast provides precise and reliable light intensity control through the 1-10V dimming system, allowing brightness adjustment across a range from 1% to 100%.

The EL2x58sc operates at an input voltage of 220-240V and is compatible with T8 58W fluorescent lamps, making it an ideal solution for commercial, industrial, and professional settings where flexible and efficient lighting control is required. Its A1 energy efficiency class and an estimated lifespan of up to 50,000 hours make it a highly cost-effective choice in terms of energy savings and reduced maintenance. The compact dimensions — 430 mm in length, 30 mm in width, and 21 mm in depth — allow straightforward integration into luminaires and industrial lighting fixtures, with a fixing length of 420 mm.
