Flos MY CIRCUIT flexible ceiling profile

My Circuit by Michael Anastassiades is the first interior lighting structure to feature a flexible profile, which allows continuous paths to be traced on the ceiling with maximum freedom.

But how does My Circuit work? To design a layout it is first necessary to select and combine the fixing modules one after the other in order to create a path which will have the function of central support and which will be mounted on the ceiling to define the shape of My Circuit. The flexible profile is then installed on these fixings, and the chosen accessories and devices are then added. ATTENTION: The fixings will be structured according to the needs of the project, it is therefore necessary to contact assistance for customized design.

LIGHT MODULES (All light modules are available for individual purchase. See Accessories):

Spots - Two families of projectors are available: My Spot and My Light Shadow Spot.

My Disc - Slim luminaire for downlight and mood lighting.

My Lines - Allows you to hang a fixture on My Circuit to create a floor lamp in the space but hanging from the profile.

DESIGN, INSTALLATION AND ASSEMBLY.

After choosing the fixing modules based on the project design and based on the number of desired lighting points, their position in the structure design and their consumption requirement, modules are added that allow the 48V power supply of the system (they have their own fixing segment, to be added to the main path in an intermediate or final position). After completing the path and installing it on the ceiling, the flexible structure will be installed which will adapt to it and will be hooked to the fixings according to the chosen path. Finally, the various types of lighting fixtures and light modules are installed on the structure using their corresponding adapters.

See diagram in images for installation examples.

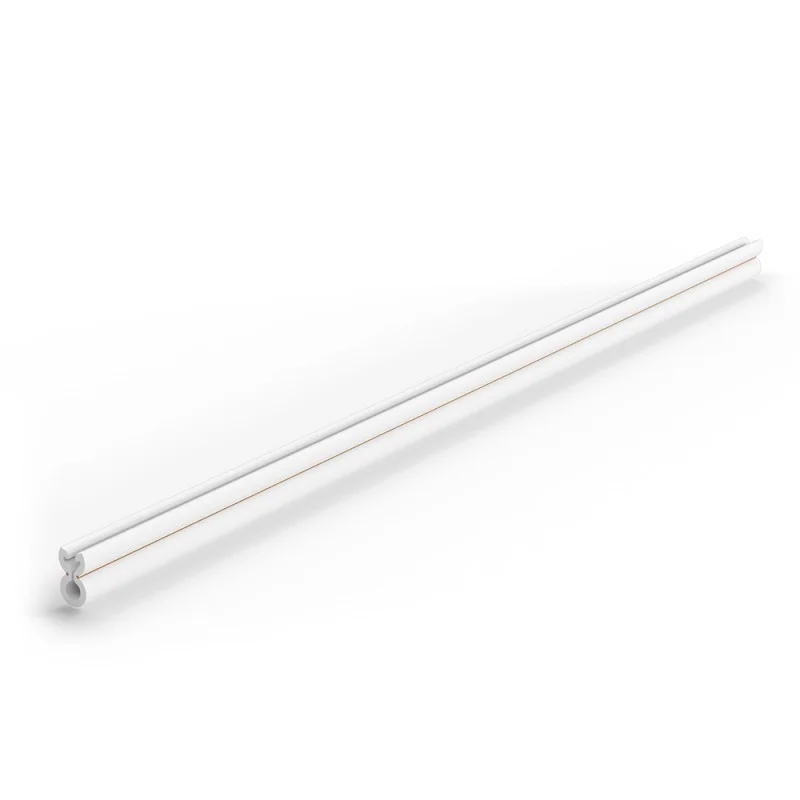

MY CIRCUIT PROFILE

Flexible electromechanical profile available in various lengths and designed to be cut by the customer to the exact length desired depending on the project. The profile is supplied wrapped in a spiral to be unrolled before proceeding with installation.

• Length: 8 meters / 15 meters / 20 meters
• Accessories: NOT included
• Mounting Tool: Included

ATTENTION: The fixings will be structured according to the needs of the project, it is therefore necessary to contact assistance for customized design.
