Flos My Circuit Light Shadow Spot 45 48V spotlight

Select Light color tone
Select Version
Select Opening beam
$809.23 Save 8%
$879.60
The product can be ordered

More buy more save

For 5 products spend per unit
For 10 products spend per unit

MY CIRCUIT LIGHT SHADOW SPOT 45 spotlight for flexible profile complete with 48V led source for indoor environments. Available in multiple versions. Profile accessories not included. See description for specifications.

Read more ...
local_shipping Shipping time:
Shipped in 7-21 working days
cancel
Availability on order
call_made Click here for availability information

Quantity

Description

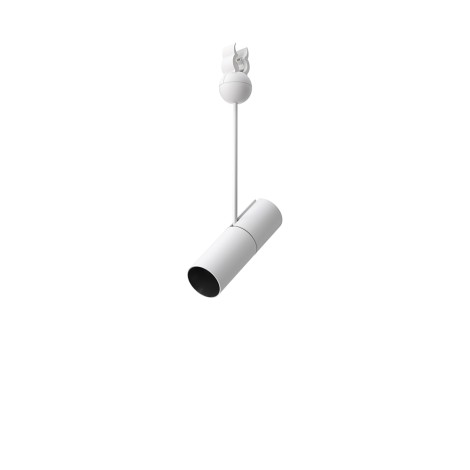

LED lighting module to be mounted on the My Circuit system. Optics with bifocal lens technology, low glare and high visual comfort. It is adjustable by 360° rotation and 90° inclination. In the downlight position, the profile connection arm is perfectly flush with the product. Available in the non-dimmable on/off version or in the Casambi version for remote wireless control (maximum distance between luminaires: 12 m).

My Circuit Light Shadow Spot Ø45 - You can choose the color temperature version between 2700K or 3000K and the versions with beam openings between Spot 15°, Medium 21° or Flood 31°.

See the diagram in the images for installation examples.

  • Source: LED Array 8W 48V
  • Light temperature and luminous flux: 2700K - 799 lm / 3000K - 844 lm
  • Driver: NOT included
  • Adjustability: 360° rotation - 90° inclination
  • Emission: Direct, Symmetrical

Dimensions

  • Track connection diameter: Ø45 mm
  • Total height of spotlight: 159 mm
  • Diameter: Ø51 mm
  • Arm length: 178 mm
Flos Architectural
cancel
Availability on order

Data sheet :

Reference
05.2960.C5
Output voltage
48V
Diameter in mm
51
Degree of protection
IP20
Light source
LED
Watt power
8 W
Product Color
WHITE COLOR
Driver power supply
Without driver
Insulation class
Insulation class III
Mounting
Track
Total height in mm
159
Color rendering index
CRI90
Light Emission
Direct
Complete with LED
Integrated
