Flos My Circuit Spot 35 48V spotlight

Brand Flos Architectural

Michael Anastassiades

$537.92 Save 8%

instead of $584.69

The product can be ordered

More buy more save

If you buy 5 products the price is

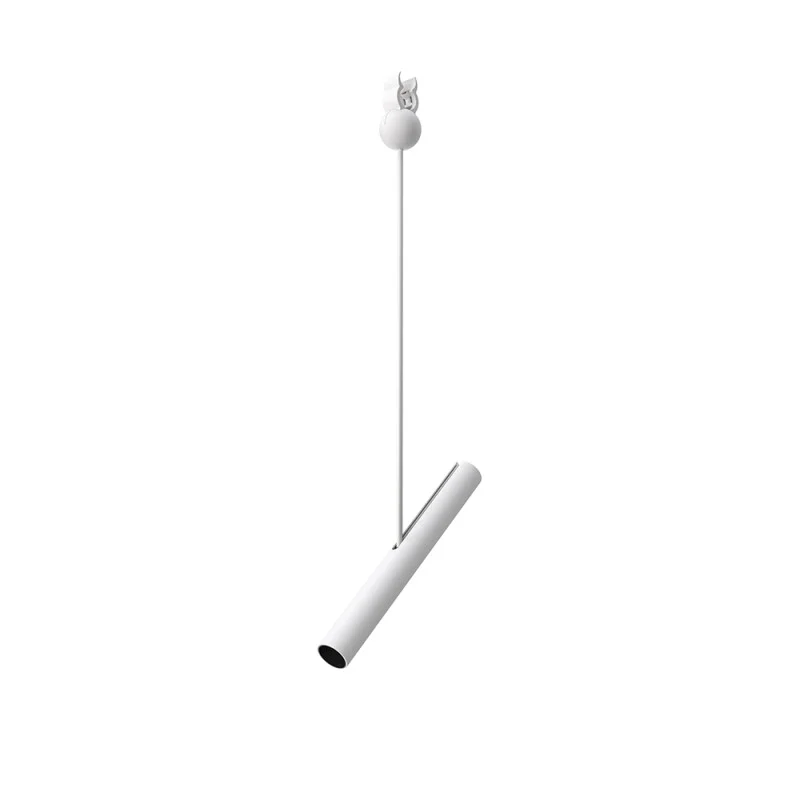

MY CIRCUIT SPOT 35 spotlight for flexible profile complete with 48V led source for indoor environments. Available in multiple versions. Profile accessories not included. See description for specifications.

Product Information:

LED lighting module to be mounted on the My Circuit system. Optics with bifocal lens technology, low glare and high visual comfort. It is adjustable by 360° rotation and 90° inclination. In the downlight position, the profile connection arm is perfectly flush with the product. Available in the non-dimmable on/off version or in the Casambi version for remote wireless control (maximum distance between luminaires: 12 m).

My Circuit Spot Ø35 - It is possible to choose the color temperature version between 2700K with beam openings between Spot 15°, Medium 19° or Flood 30°, or 3000K with beam openings between Spot 15°, Medium 20° or Flood 31°.

See the diagram in the images for installation examples.

Source: LED Array 8W 48V
Light temperature and luminous flux: 2700K - 623 lm / 3000K - 641 lm
Driver: NOT included
Adjustability: 360° rotation - 90° inclination
Emission: Direct, Symmetrical

Dimensions

Track connection diameter: Ø45 mm
Total height of spotlight: 270 mm
Diameter: Ø34 mm
Arm length: 450 mm

picture_as_pdf Datasheet

Available versions

Light color tone:

2700°K WARM LIGHT -

3000°K WARM LIGHT -

Version:

ON-OFF -

CASAMBI -

Opening beam:

Spot -

Medium -

Flood -

100% original product by

Details:

Data sheet

Reference: 05.2910.C5
Output voltage: 48V
Diameter in mm: 34
Degree of protection: IP20
Light source: LED
Watt power: 8 W
Product Color: WHITE COLOR
Driver power supply: Without driver
Insulation class: Insulation class III
Mounting: Track
Total height in mm: 270
Color rendering index: CRI90
Light Emission: Direct
Complete with LED: Integrated

Product accessories

-8% Reduced price On sale!

Reference: 06.0330.C5

Flos Architectural

Flos MY CIRCUIT flexible ceiling profile

Available in different variants

MY CIRCUIT flexible 48V electromechanical profile for ceiling installation, available in three lengths. Accessories and light fixtures must be ordered separately. See description for full specifications.

$997.26 $1,083.98

Shipped in 1-2 days
