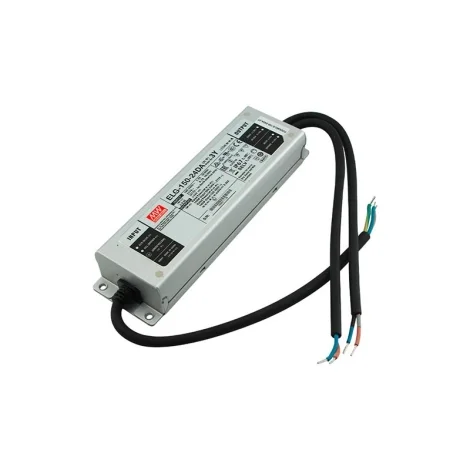

Meanwell Power Supply ELG-150-24DA-3Y 150W 24V IP67

Name: Meanwell Power Supply ELG-150-24DA-3Y 150W 24V IP67
Brand: Mean Well
SKU: ELG-150-24DA-3Y
Price: 498.48 CNY
Availability: InStock

Brand :

¥498.48 Save 25%

¥664.64

24 / 48 hours

More buy more save

For 10 products spend per unit

For 20 products spend per unit

Power supply unit, Mean Well version ELG-150-24DA-3Y with power of 150W from 6,25A constant voltage of 24Volt. Degree of protection IP67 suitable for indoor and outdoor use. Dimmer function for regulating the light via the DALI system.

payments Secure payment:

delivery_truck_speed Delivery Information:

Fast shipping within 24-48 hours for products marked "Shipped in 1-2 days."

back_to_tab Product returns:

Returns must be made within 30 days of the delivery date.

Description
Product Details

Description

ELG-150-24DA series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output with dimmable DALI function. ELG-150 operates from 100~360VAC with rated voltage of 24V. Thanks to the high efficiency up to 89%, with the fanless design, the entire series is able to operate for -40 ~ +90 case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Output voltage 24V
Operation Constant current / constant voltage
Output current 6.25A
Maximum output power 150W
Dimming operation DALI
AC or DC Input voltage AC,DC
IP Rating IP67
Configuration Encapsulated
Number of outputs 1
Output 24 V dc @ 6.25 A
Series ELG-150
Primary Type AC-DC, DC-DC
Voltage rating 100 †’ 305 V ac, 142 †’ 431 V dc

Manufacturer : Mean Well

check_circle

In stock

In store we have 11 Items

Data sheet :

Barcode: 8050539320904
Reference: ELG-150-24DA-3Y
Input voltage: 100-240 V
Output voltage: 24V DC
Depth in mm: 35
Width in mm: 63
Length in mm: 219
Degree of protection: IP67
Material: Aluminum
Adjustable power: with DALI system
Current carrying capacity: 6.25A
Power output in watts: 150 w
Efficiency %: 89
Compatible voltage: EU-AUD-USA-UK-JAP

Download :

attach_file Download

Warranty :

2-year warranty from date of purchase

counter_2 workspace_premium

Related Products

Viewed products

-14% Reduced price On sale!

Reference: 3.9403.000.0

IGuzzini

iGuzzini iSign Cable For Single Horizontal...

iSign Cable For Single Horizontal Suspension

Shipped in 7-21 working days

¥314.65 ¥365.88

-15% Reduced price On sale!

Reference: 39OA6K350MNW

Esse-ci

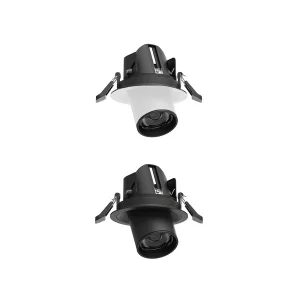

Esse-ci Make R Mini recessed led spotlight

Make R Mini, recessed ceiling spotlight with integrated orientable and adjustable led. Aluminum body. Polycarbonate lens. Available in the two color temperatures 3000K or 4000K, with power 3W or 6W and light beam angle equal to 24°, 36° or 50°.

Shipped in 7-21 working days

¥739.66 ¥870.19

-10% Reduced price On sale!

Reference: 133076A381

&Tradition

&Tradition Trace cabinet

&Tradition Trace, design cabinet made of oak wood. Available in two sizes and two finishes.

Shipped in 7-21 working days

¥20,211.24 ¥22,456.93

-15% Reduced price On sale!

Reference: 1885.004R24E30WD

Buzzi & Buzzi

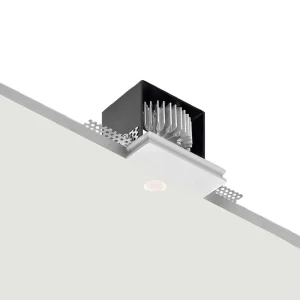

Buzzi & Buzzi Genius Basic LED Square Recessed...
