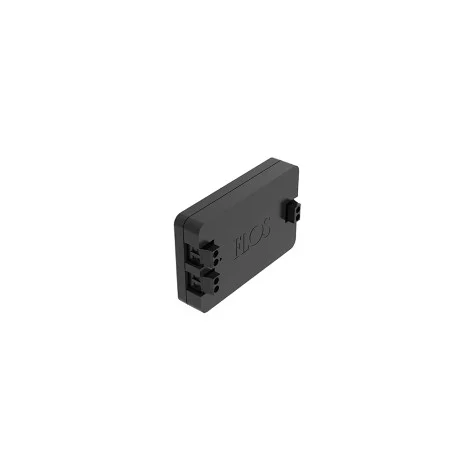

Flos control box dimmable 1-10V at 48V
  • Flos control box dimmable 1-10V at 48V
  • Flos control box dimmable 1-10V at 48V
  • Flos control box dimmable 1-10V at 48V
  • Flos control box dimmable 1-10V at 48V

Flos control box dimmable 1-10V at 48V

Brand :
$138.14 Save 5%
$145.41
The product can be ordered

1-10V, 48V dimmable control box. Necessary to transform passive (sink) 1-10V control systems into active (source). For remote installation. Used for 100-120V or 220-240V electrified track systems as Running Magnet, Tracking magnet and Infrastructure by flos.

Read more ...
local_shipping Shipping time:
Shipped in 7-21 working days
cancel
Availability on order
call_made Click here for availability information

Quantity

Description

Flos dimmable control box 1-10V, 48V. Necessary to transform passive (sink) 1-10V control systems into active (source). For remote installation.

Characteristics:

  • Input voltage: 48/24V
  • Output voltage: 1-10V
  • Maximum distance: 20m
  • Black colour
  • Weight:0.054kg
  • Dimmer resistance range: 15-600 kOhm

For more information, see the attached PDF.

Flos spare parts
cancel
Availability on order

Data sheet :

Reference
08.0613.14A
Input voltage
48/24V
Output voltage
1-10V
Depth in mm
19
Width in mm
53
Length in mm
100
Degree of protection
IP20
Material
Pvc
Adjustable power
Dimmable
Download :

attach_file Download
