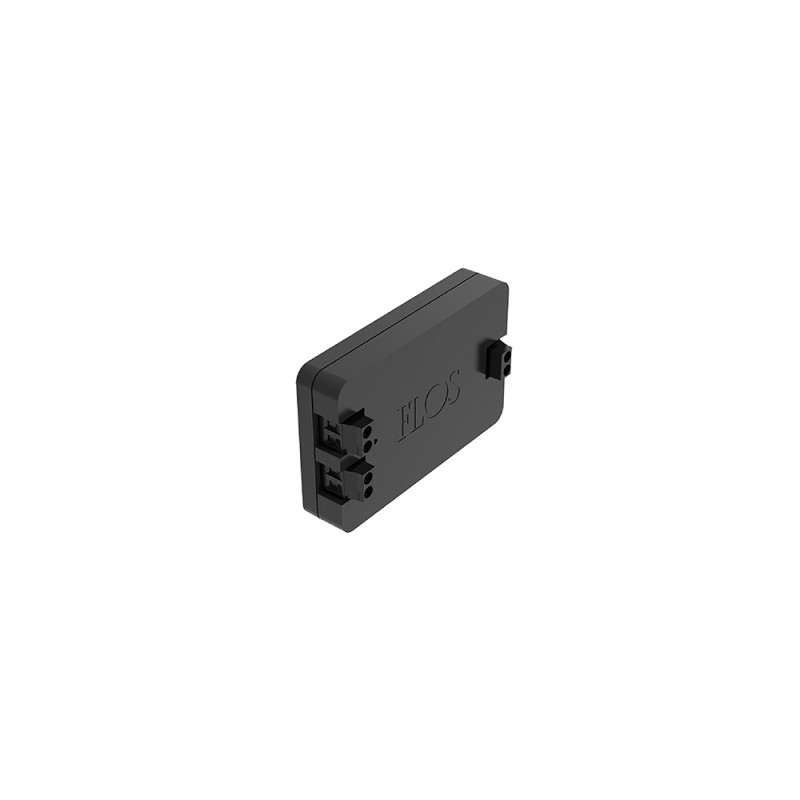

Flos control box dimmable 1-10V at 48V

The Flos control box dimmable 1-10V at 48V (ref. 08.0613.14A) is a technical component by Flos spare parts, designed to convert passive (sink) 1-10V control systems into active (source) ones, enabling dimming functionality in compatible lighting installations. Its compact body, measuring 100 x 53 x 19 mm, is made of PVC for a discreet and practical fit.

The unit accepts an input voltage of 48/24V and delivers a 1-10V control output, with a dimmer resistance range of 15 to 600 kOhm and a maximum remote installation distance of 20 metres. Compatible with Flos electrified track systems such as Running Magnet, Tracking Magnet and Infrastructure, it operates with 100-120V or 220-240V installations. The IP20 protection rating makes it suitable for indoor use. Weighing just 0.054 kg and finished in black, it integrates seamlessly into any professional technical setup.
