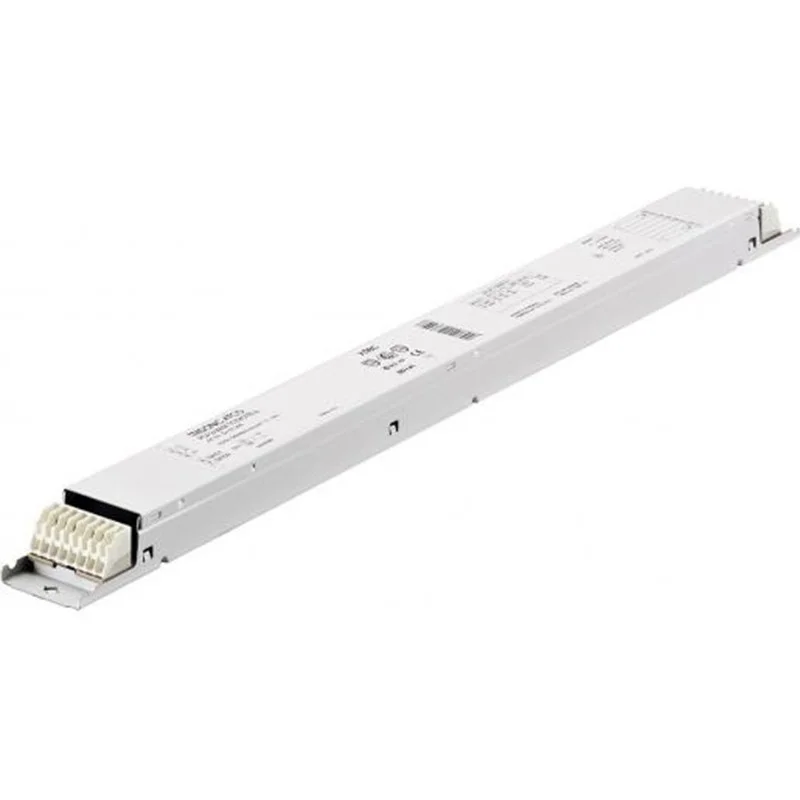

Tridonic PCA 1x21 / 39 T5 Ballast Dimmable DALI Fluorescent lamps

Product Information:

. world first: first processor-controlled ballast with XTIC inside
. operation of T5 lamps of the same length (e.g. FH 28 W / FQ 54 W)
. automatic lamp detection and operation with correct lamp parameters
. average service life = 50,000 h (at ta max. with a failure rate 0.2 % per 1,000 operating hours)
. dimming range from 1,100 %
. lamp friendly warm start within 0.5 s with AC and 0.2 s with DC
. power input on standby < 0.5 W
. disturbance free precise control with a digital signal DALI (Digital Addressable Lighting Interface) or switchDIM
. fully digital lamp management for flash-free starting from any dimmer setting
. operating frequency ~40-100 kHz
. Intelligent Voltage Guard (over voltage indication and under voltage shutdown)
. Intelligent Temperature Guard (overtemperature protection)
. automatically triggered adjustable emergency light value for DC and rectified AC voltage
. SMART Heating Concept for optimum filament heating at any dimming level and cut off the electrodes at approx. 90 % dimmlevel for maximum energy efficiency

Extensive feedback functions and adjustable parameters:
. OEM-specific reserved memory for storing
Certified: EN 55015 EN 55022 EN 60929 EN 61000-3-2 EN 61347-2-3 EN 61547
Suitable for emergency
installations according to EN 50172
customer data in the ballast
. extensive diagnostic options
. the emergency light value can be set between 1 % and 100 %
. DALI-MEMORY
