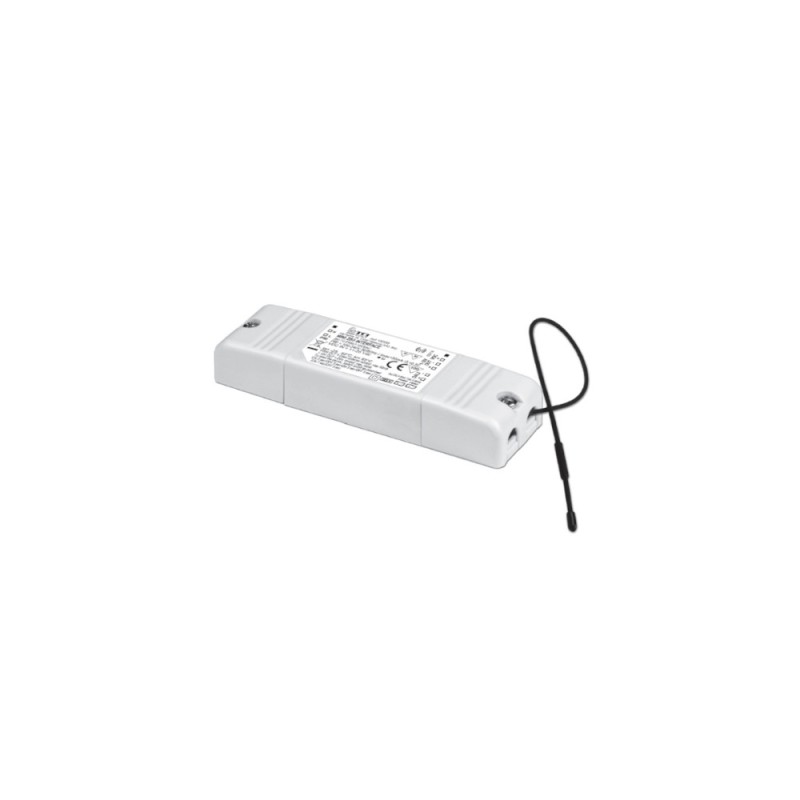

TCI Wireless Signal Converter MINI ZIGBEE DALI 1-10V

Product Information:

Features

Interface which can convert a WIRELESS ZB3 signal into a DALI or 0/1...10 V signals.

Class II protection against electric shock for direct or indirect contact.

The converter can be powered directly from the mains (100 ÷ 240 VAC) or by a 12-24 VDC voltage.

Protections:

- against input over voltages from mains;

- against short circuit and open circuit;

- thermal protection = C.5.a.

Operation mode

Designed to work with DALI-2 systems.

DALI port max. 1 device @12Vdc input.

DALI port max. 4 devices @24Vdc input.

0/1-10 V port Imax. 10mA.

Open collector” type PWM output.

Reset: perform 3 power on/off cycle of 3-5-7 seconds. At fourth power of the product it performs a flash to confirm the reset

For more information, see the attached PDF

TCI wireless products belonging to this family have as a plus the ZigBee standard protocol that makes them compatible with a very wide range of ZigBee devices already available on the market. The capacity of this system is highly extended as it is based on a mesh network, while all the easyto-fi nd accessories guarantee its extreme fl exibility in terms of building an ad-hoc solution. Our ZigBee products are ideal also for all those applications requiring both on-site and remotecontrol to achieve important cost savings, thanks to the scheduling via gateway and the monitoring of consumptions  with a wattmeter. All the information can be collected and stored in the Cloud.
