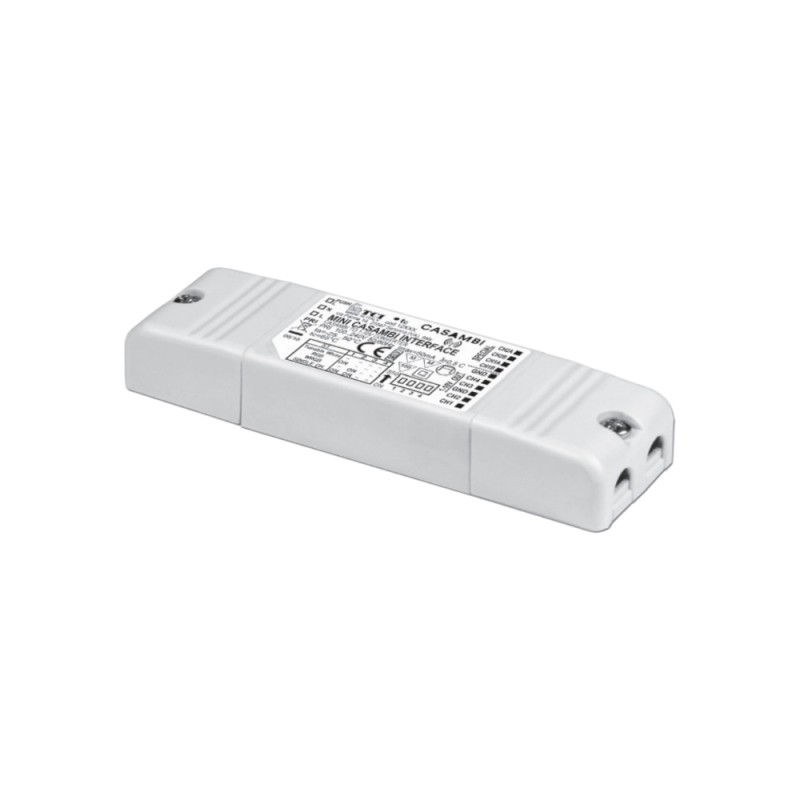

TCI Wireless Signal Converter CASAMBI 1-10V

The TCI Wireless Signal Converter CASAMBI 1-10V is a compact interface designed to convert CASAMBI wireless signals into 0/1...10V analogue signals, enabling seamless integration of the CASAMBI Bluetooth mesh protocol with standard lighting control systems.

The TW version also supports direct control of a LENS VECTOR device, extending smart lighting management capabilities across residential, commercial and advanced tertiary environments. The converter can be powered directly from the mains at 100÷240 VAC, with no external power supply required.

Main technical features

The converter provides two independent 0/1-10V outputs (2 x 10mA max, CH1-2) plus 2 dedicated LENS VECTOR channels. The input voltage ranges from 220 to 240V. Its compact dimensions — 115 x 34 x 19 mm — and PVC housing allow easy installation even in confined spaces. The IP20 protection rating makes it suitable for indoor installations.

Safety and protection

The device is rated Insulation Class II, providing protection against electric shock from both direct and indirect contact. Built-in safeguards include protection against mains surge overvoltages, short circuit and open circuit conditions. Thermal protection with automatic reset is also integrated. Classified Non-IC, with a minimum clearance of 5 mm from flammable building elements and separate light sources.

Applications

Ideal for integrating the CASAMBI system into existing lighting installations equipped with drivers or ballasts featuring a 1-10V input, in environments such as offices, hotels, retail spaces and architectural settings requiring advanced lighting scenes.

For complete technical specifications and wiring diagrams, please refer to the attached technical PDF.
