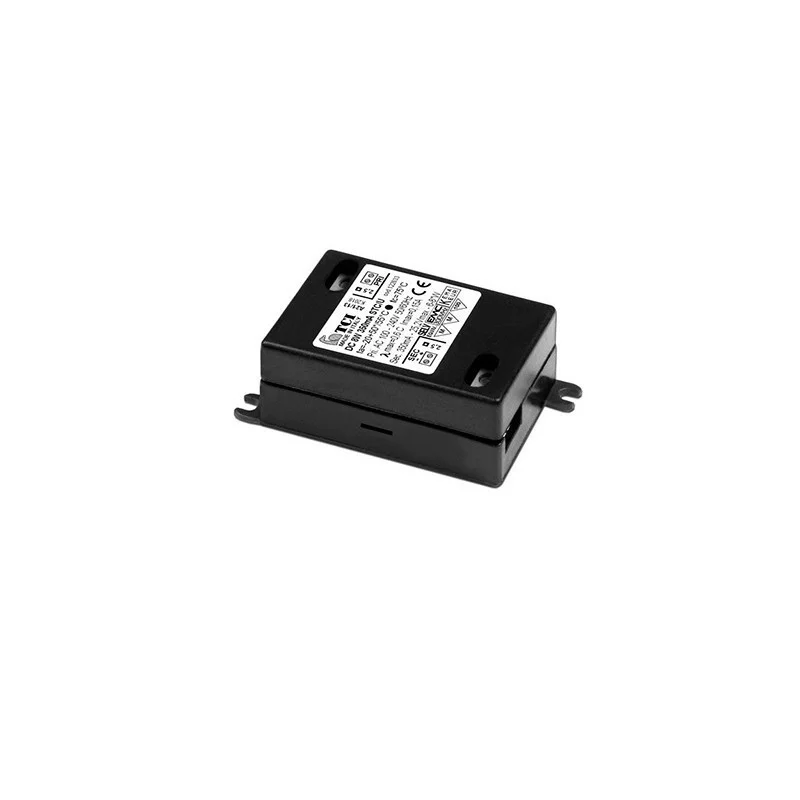

TCI STC/U 9W 350mA DC Direct Current Electronic Drivers

The TCI STC/U 9W 350mA electronic driver is a compact DC constant current power supply designed for built-in use in LED lighting fixtures. Compatible with input voltages from 100-240V, this TCI driver is suitable for worldwide use, including EU, USA, UK, Australia and Japan markets.

With its outstanding reliability and 10-year warranty, the TCI STC/U is a professional choice for installers and lighting designers seeking long-term performance in both residential and commercial applications.

Key technical specifications

The driver delivers a constant output current of 350mA at a power output of 9W with a maximum output voltage of 30V DC. Current regulation is maintained at -8% / +5%, including temperature variations. Input and output terminal blocks are positioned on opposite sides, with a single terminal at primary and secondary accepting wire cross-sections up to 2.5 mm² / AWG13. The compact dimensions of 57 x 31 x 21 mm make integration straightforward. The housing is made of PVC material, rated IP20 with insulation class II.

Safety and protections

The TCI STC/U incorporates a comprehensive protection system, including safeguards against overheating and short circuits, mains voltage spikes, and overloads, ensuring long-lasting and safe operation in every installation.

Applications

Suitable for lighting equipment in protection class I and II, this driver is the ideal solution for custom LED lighting projects in residential, retail and contract environments wherever a stable, compact DC power supply is required.
