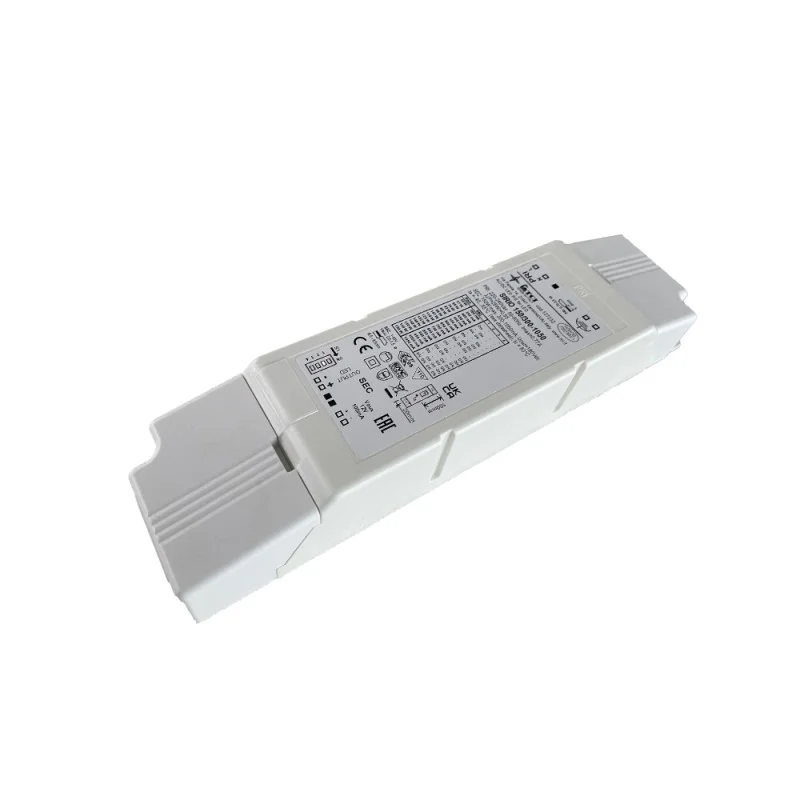

TCI SIRIO 150/300-1050mA Direct Current Power Supply with Dip-Switch

Brand :

kr2,054.29 Save 25%

kr2,739.06

24 / 48 hours

More buy more save

For 5 products spend per unit

For 10 products spend per unit

Sirio 150W from 300 to 1050mA high power adjustable direct current electronic ballast with Dip-Switch for selecting the direct current (DC) output. Rated voltage 220-240V. For indoor environments.

payments Secure payment:

delivery_truck_speed Delivery Information:

Fast shipping within 24-48 hours for products marked "Shipped in 1-2 days."

back_to_tab Product returns:

Returns must be made within 30 days of the delivery date.

Description
Product Details

Description

Features

- Multi-power power supply equipped with dip-switch for selecting the output current.

- IP20 independent power supply.

- Protected in class II against electric shocks for direct and indirect contacts.

- PFC active.

- Auxiliary output 12V max 100mA.

- ±5% regulated current including temperature variations.

- Opposite input and output terminals (cable section up to 1.5 - 2.5 mm² / AWG15 - AWG13).

- Strain relief on primary and secondary for diameter cables: min 3 mm - max 8 mm.

- Protections:

Thermal and short circuit
Against network extra-voltages
Against overloads

- Thermal protection = C.5.a

Rated voltage: 220-240V

Selection by dip-switch of the output current

Variants:

50W 75...165V - 300mA const.

57W 75...165V - 350mA const.

66W 75...165V - 400mA const.

74W 75...165V - 450mA const.

82W 70...165V - 500mA const.

90W 70...165V - 550mA const.

99W 70...165V - 600mA const.

107W 70...165V - 650mA const.

116W 70...165V - 700mA const.

123W 70...165V - 750mA const.

132W 70...165V - 800mA const.

140W 70...165V - 850mA const.

148W 70...165V - 900mA const.

150W 70...157V - 950mA const.

150W 70...150V - 1A const.

150W 70...142V - 1.05A const.

Manufacturer : TCI

check_circle

In stock

In store we have 2 Items

Data sheet :

Barcode: 8010703361492
Reference: 127232
Input voltage: 220-240 V
Depth in mm: 59
Width in mm: 40
Length in mm: 240
Degree of protection: IP20
Material: Pvc
Light source: LED
Adjustable power: Not dimmable
Constant current output: 300~1050mA
Insulation class: Insulation class II

Download :

attach_file Download

Warranty :

2-year warranty from date of purchase
