TCI SIRIO 150/200-700mA Direct Current Multipower Supply with Dip-Switch
  • TCI SIRIO 150/200-700mA Direct Current Multipower Supply with Dip-Switch
  • TCI SIRIO 150/200-700mA Direct Current Multipower Supply with Dip-Switch

TCI SIRIO 150w 200-700mA Multipower

Brand :
$1,698.27 Save 25%
$2,264.35
24 / 48 hours

More buy more save

For 5 products spend per unit
For 10 products spend per unit

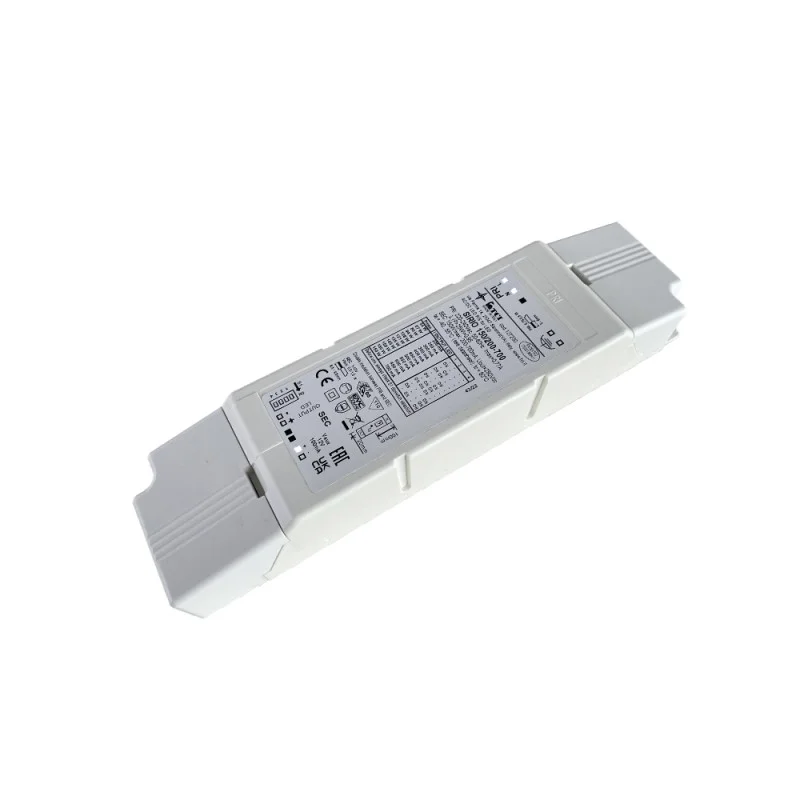

Sirio 150W from 200 to 700mA high power adjustable direct current electronic ballast with Dip-Switch for selecting the direct current (DC) output. Rated input voltage 220-240V.

Read more ...
local_shipping Shipping time:
Shipped in 1-2 days
check_circle
In stock
3 Items
call_made Click here for availability information

Quantity

Description

Features

- Multi-power power supply equipped with dip-switch for selecting the output current.
- IP20 independent power supply.
- Protected in class II against electric shocks for direct and indirect contacts.
- PFC active.
- Auxiliary output 12V max 100mA.
- ±5% regulated current including temperature variations.
- Opposite input and output terminals (cable section up to 1.5 - 2.5 mm² / AWG15 - AWG13).
- Strain relief on primary and secondary for diameter cables: min 3 mm - max 8 mm.
- Protections:
  • Thermal and short circuit
  • Against network extra-voltages
  • Against overloads
- Thermal protection = C.5.a
Rated voltage: 220-240V
Selection by dip-switch of the output current
Variants:
54W 105...270V - 200mA const.
67W 105...270V - 250mA const.
80W 105...270V - 300mA const.
94W 105...270V - 350mA const.
108W 105...270V - 400mA const.
121W 105...270V - 450mA const.
135W 105...270V - 500mA const.
145W 105...265V - 550mA const.
150W 105...250V - 600mA const.
150W 105...230V - 650mA const.
150W 105...215V - 700mA const.
TCI
check_circle
In stock
3 Items

Data sheet :

Barcode
8010703361270
Reference
127230
Input voltage
220-240 V
Depth in mm
59
Width in mm
40
Length in mm
240
Degree of protection
IP20
Material
Pvc
Light source
LED
Adjustable power
Not dimmable
Insulation class
Insulation class II
