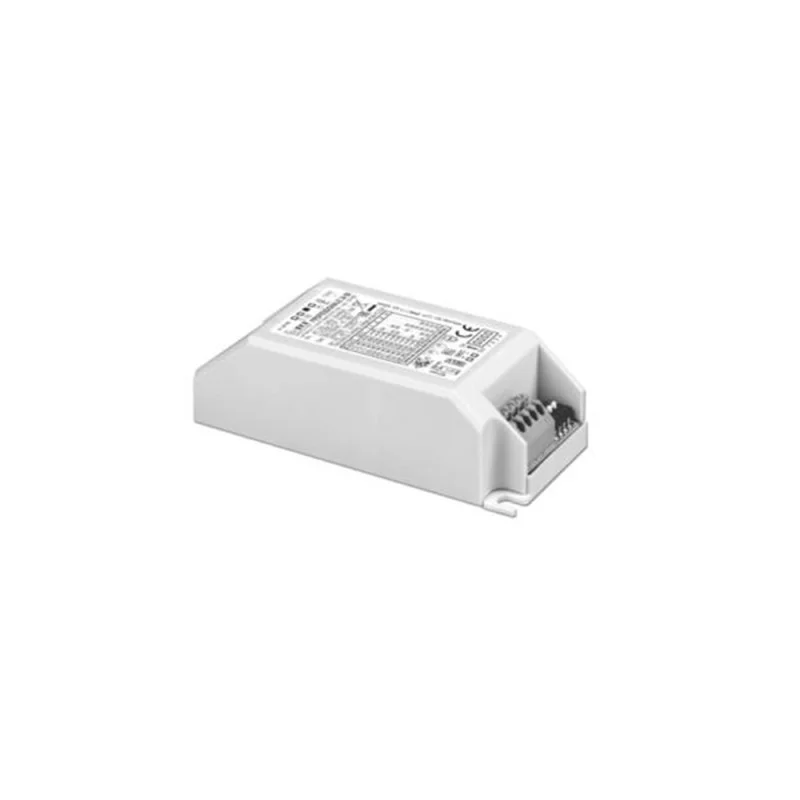

TCI Professional 34 BI 12-34W DC Direct Current Electronic Mini Drivers

Product Information:

Features

• Multipower driver supplied with dip-switch for the selection of the output current.

• Driver for built-in use (PROFESSIONALE 34 BI).

• It can be used for lighting equipment in protection class I (PROFESSIONALE 34 BI).

• Active Power Factor Corrector.

• Current regulation ±5/7 % including temperature variations.

• Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm2 / AWG15).

• Driver can be secured with slot for screws.

• Protections:

- against overheating and short circuits; - against mains voltage spikes;

- against overloads.

• Thermal protection = C.5.a

Selection of constant output current via dip-switch Variants:

• 12W 20-50V 250mA
• 15W 15-50V 300mA
• 17W 15-50V 350mA
• 20W 15-50V 400mA
• 22W 15-50V 450mA
• 25W 10-50V 500mA
• 27W 10-50V 500mA
• 30W 10-50V 600mA
• 32W 10-49V 650mA
• 34W 10-48V 700mA
