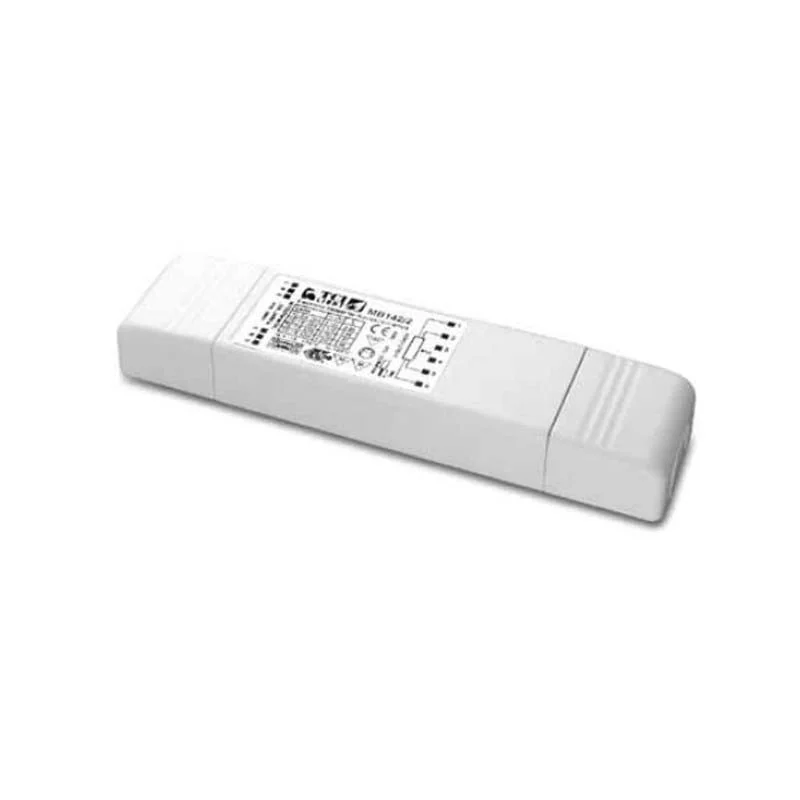

TCI MB226/2 Mini multipower electronic ballast 2x14-24W

The TCI MB226/2 is a compact multi-power mini electronic ballast for independent use, designed to drive fluorescent discharge lamps in a 2x14-24W configuration. Thanks to its multi-lamp technology, this TCI ballast supports multiple power combinations, making it a versatile solution for professional lighting systems at 220-240 V.

Ideal for protection class II lighting equipment for indoor use, the MB226/2 stands out for its extremely compact dimensions (155 x 38 x 21 mm), allowing easy integration even in space-constrained luminaires. It is compatible with lampholders GX24q-3, G24q-3, 2G11, 2G10 and 2GX13 and with TC-D/E, TC-T/E, TC-L and TC-F lamp types.

Key technical specifications

The ballast operates at a rated voltage of 220-240 V, with an operating range from 198 to 264 V, DC voltage compatibility up to 264 V and frequency 0/50-60 Hz. Power output ranges from 13W to 42W, supporting 2x26W, 2x18-24W and 2x22W configurations. Push-wire terminals (0.5-1.5 mm²) and loop-enabled input terminals simplify installation. Protection degree is IP20 and energy efficiency is rated EEI=A2. Pre-heating ignition maximises lamp service life.

Safety and protections

The MB226/2 features a comprehensive protection system covering mains voltage spikes, lamp disconnection with automatic pre-heat restart, lamp failure and end-of-lamp-life detection. It is suitable for connection to emergency lighting equipment in compliance with EN 60598-2-22.

Applications

The TCI MB226/2 ballast is suited for commercial installations, offices, retail environments and any setting requiring a compact, reliable electronic ballast for twin compact fluorescent lamps.
