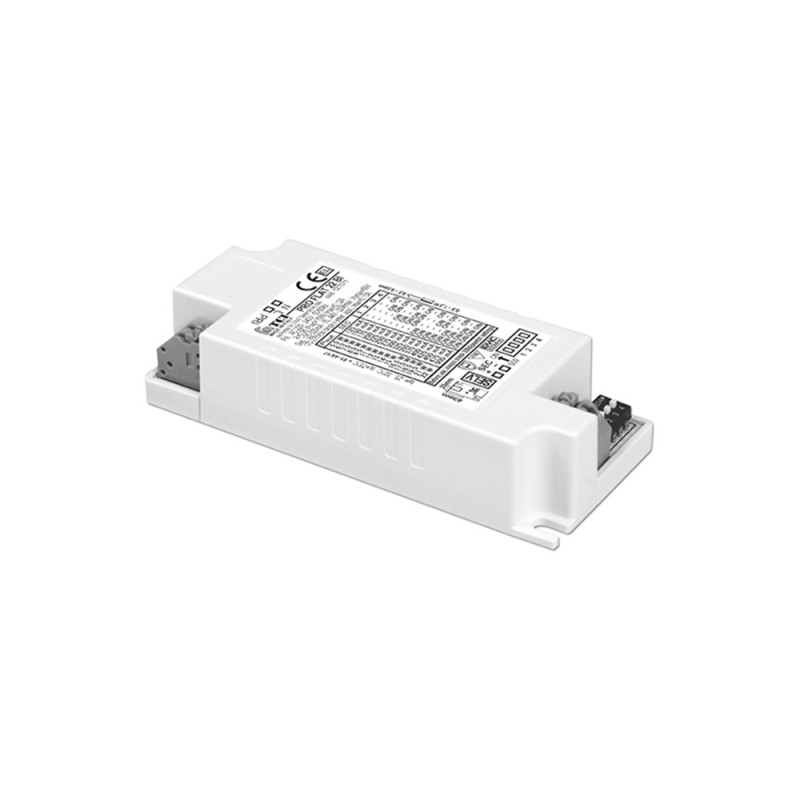

TCI LED Power Supply 22W PRO FLAT 22 BI Mini In Direct Current

The TCI PRO FLAT 22 BI Mini is a compact 22W constant current LED driver with an input voltage of 220-240V, designed for built-in use in Class I and II luminaires. Its slim dimensions of 97 x 21.5 x 33.5 mm make it an excellent choice for space-constrained lighting fixtures.

Equipped with a dip-switch for constant output current selection, this multipower driver offers 16 configurable variants ranging from 125 mA (5.5W) to 500 mA (22W), with output voltages up to 20V max, providing outstanding flexibility for professional LED lighting installations.

Main technical features

The driver features an active Power Factor Corrector (PFC) for high energy efficiency. Output current regulation is maintained at ±5%, including temperature variations. Input and output terminal blocks are positioned on opposite sides, supporting cable cross-sections up to 1.5 mm² (AWG15). The unit is secured via slot for screws and carries Insulation Class II and IP20 protection rating.

Safety and protections

The TCI PRO FLAT 22 BI Mini provides comprehensive protection against overheating, short circuits, mains voltage spikes and overloads, ensuring long-term reliability in continuous professional use.

Applications

Perfectly suited for integration into recessed LED spotlights, architectural lighting systems, LED modules and custom luminaires requiring stable constant current power supply in indoor environments.
