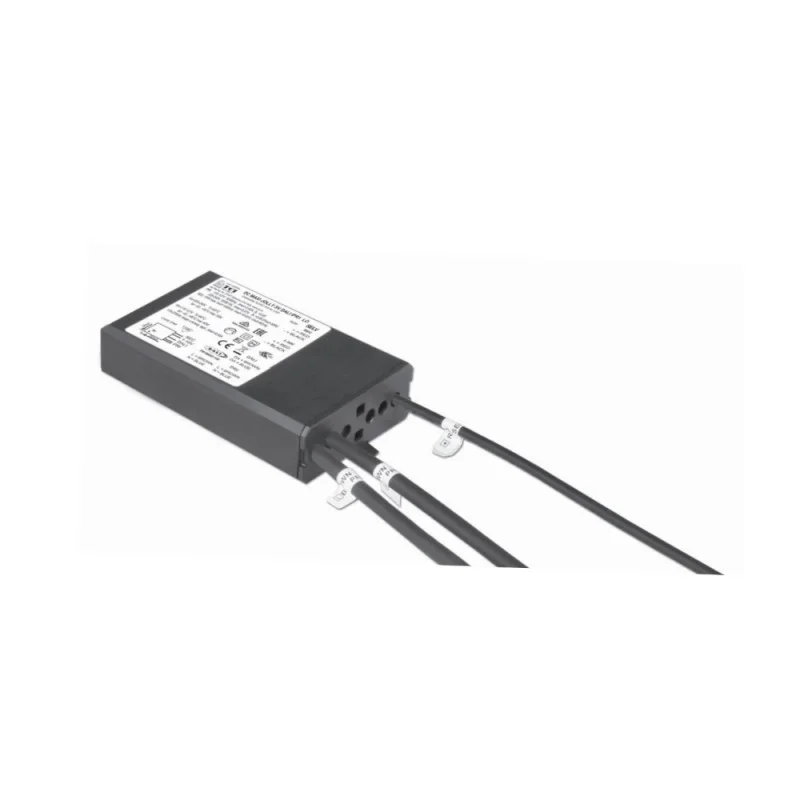

TCI LED Driver MAXI JOLLY SV DALI IPR1 IP68

The TCI MAXI JOLLY SV DALI IPR1 IP68 LED driver is a constant current power supply adjustable from 350 to 1400 mA, designed for professional lighting installations requiring advanced environmental protection and precise dimming control. Its IP68 rating and compatibility with EU, USA, UK, AUS and JAP voltages make it a versatile solution for demanding environments worldwide.

Full integration with the DALI-2 protocol and 0/1...10V interface allows seamless use in building automation and smart lighting systems, enabling smooth dimming from 1 to 100% with professional accuracy.

Key technical features

The driver operates across a power range of 3.5 to 70W (3.5–40W at 110/127V) with an output voltage of 10 to 50V. A 92% efficiency rate and active PFC ensure optimised energy consumption. Output current is adjustable via the DALI port using the DALI WEB PROGRAMMER (AOC function). Compact dimensions of 143 x 80 x 31 mm simplify installation in confined spaces.

Safety and protections

Built to Insulation Class II, the driver protects against electric shock from direct and indirect contact. It features thermal protection, short-circuit and overload protection, and mains spike protection up to 8kV. Supplied with 400 mm connecting leads on both primary and secondary circuits.

Applications

Ideal for outdoor lighting, wet or submersible installations, architectural lighting systems and DALI-controlled scenarios in residential and contract environments.

For full electrical specifications, refer to the attached technical datasheet. Programming requires the separate purchase of the TCI DALI WEB PROGRAMMER (ref. 126500).
