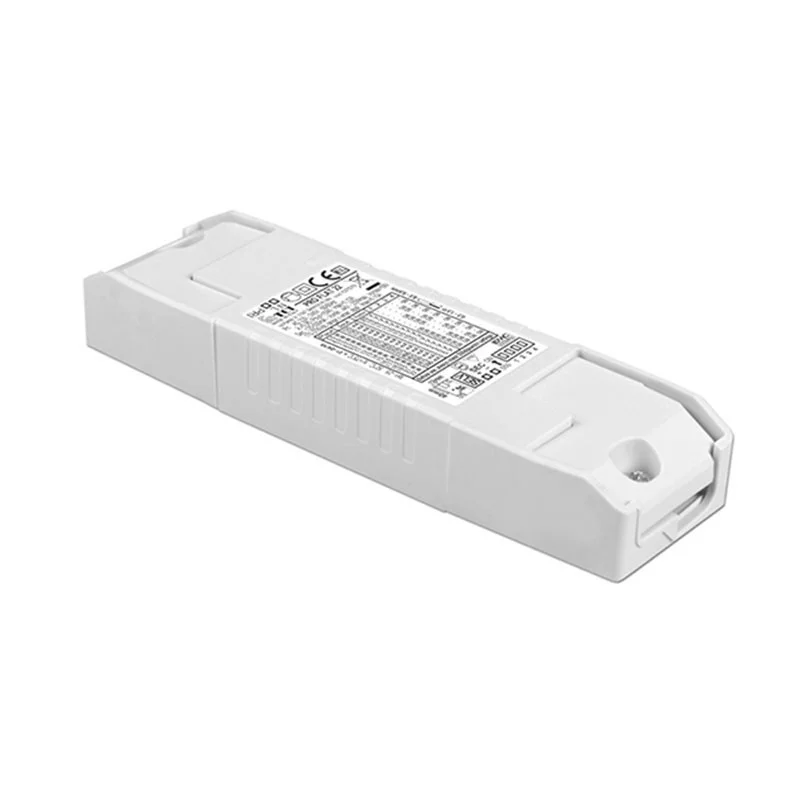

TCI LED Driver LED PRO FLAT 22 Direct Current Electronic

The TCI PRO FLAT 22 is a constant current LED driver rated at 22W, featuring a built-in dip-switch for manual output current selection, adjustable from 125 mA to 500 mA. Its ultra-slim profile of 146.5×43.5×22 mm makes it ideal for professional and design lighting installations.

This TCI multipower LED driver is designed for lighting projects requiring flexible configuration without component replacement. Compatible with luminaires in protection class I and II, it is a reliable choice for lighting designers and professional installers.

Key technical features

The driver operates on a universal input voltage of 100–240V, suitable for any electrical system. The constant current output is selectable via dip-switch across 16 configurations, ranging from 5.5W/125mA to 22W/500mA, with output voltages up to 44V. Current regulation accuracy is ±5% including temperature variations. The active PFC ensures a high power factor. Input and output terminal blocks are positioned on opposite sides, accepting cable cross-sections up to 1.5 mm², with cable clamps for diameters from 3 to 10 mm. Protection rating is IP20, with insulation class II.

Safety and protections

The TCI PRO FLAT 22 features comprehensive protection against thermal overheating (C.5.a), short circuits, mains voltage spikes and overloads, ensuring long-term reliability in every installation.

Applications

Suitable for powering LED strips, LED modules and luminaires in residential, commercial and architectural lighting projects requiring a high-quality, flexible constant current driver.
