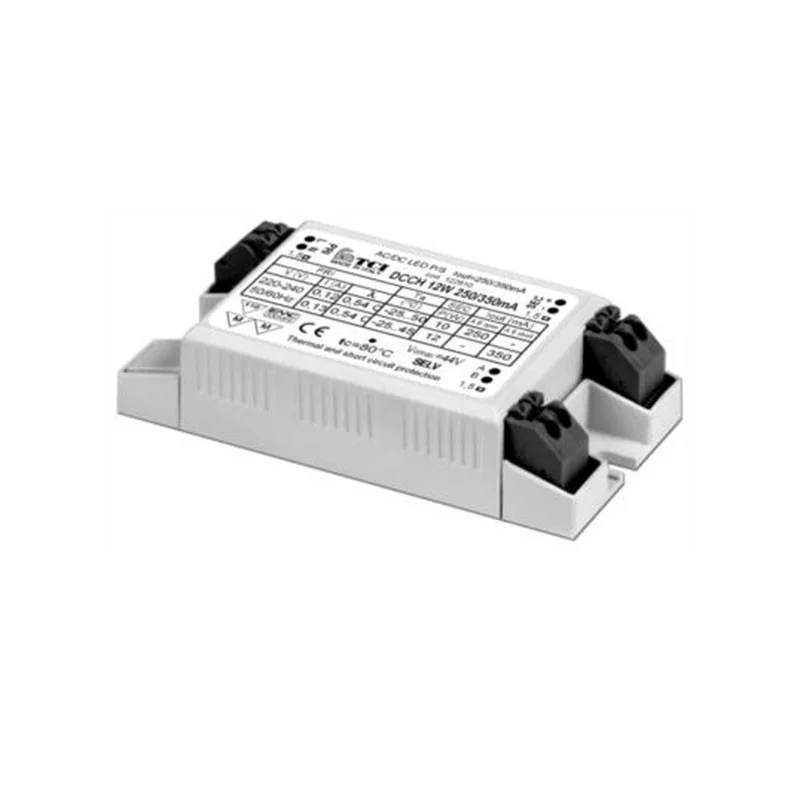

TCI LED Driver LED DCCH 12W 250/350mA Direct Current Electronic

The TCI DCCH 12W LED driver is a direct current constant current driver designed to deliver stable, reliable power to high-quality LED light sources. Under reference TCI 141092, this device stands out for its ultra-compact dimensions — 70x41x19 mm — making it ideal for integration into recessed luminaires and professional LED lighting systems.

The ability to select the output current between 250mA and 350mA via short circuit on the dedicated terminal block gives this TCI built-in LED driver remarkable flexibility across a wide range of residential and commercial lighting applications, with compatibility for protection class I and II luminaires.

Key technical specifications

The driver operates at an input voltage of 220-240V and delivers a 12W output power in constant current mode, with current regulation of -6%/+5% including temperature variations. Push-wire connections accommodate cable cross-sections up to 1.5 mm² (AWG15), with input and output terminal blocks positioned on opposite sides for neat wiring. Mounting is achieved via dedicated screw slots. The IP20 protection rating and insulation class II confirm its use in indoor environments.

Safety and protections

The TCI DCCH 12W features a comprehensive protection system including thermal protection and short circuit protection, protection against mains voltage spikes, and overload protection, ensuring long service life and maximum system reliability.

Applications

Suitable for powering LED strips, LED spotlights and LED modules in recessed installations, suspended ceilings and design luminaires for indoor use.
