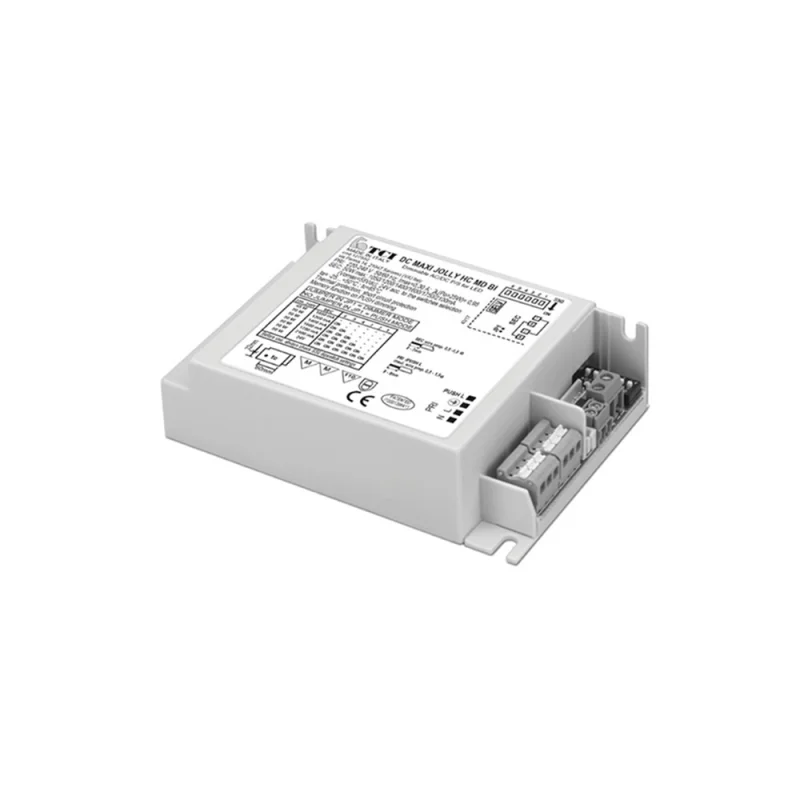

TCI LED Driver DC 50W Maxi Jolly HC MD BI Bilevel Dimmable
  • TCI LED Driver DC 50W Maxi Jolly HC MD BI Bilevel Dimmable
  • TCI LED Driver 110-240V DC 55W Maxi Jolly HC Bilevel Dimmable

TCI LED Driver DC 50W Maxi Jolly HC MD BI Bilevel Dimmable

₩199,855 Save 25%
₩266,473
The product can be ordered

More buy more save

For 5 products spend per unit
For 10 products spend per unit
Electronic power supply adjustable in direct current. Multi-power power supply equipped with dip-switch with the selection of the output current. Possibility to adjust the light intensity through 1-10V or Push system. Rated voltage 110-127V or 220-240V.
Read more ... arrow_drop_down
local_shipping
Shipped in 7-21 working days
More information about shipping

Quantity

Description

Multipower driver supplied with dip-switch for the selection of the output current.
Driver for built-in use.
It can be used for lighting equipment in protection class I.
Active Power Factor Corrector.
Analogical input for thermal sensor connection.
Auxiliary output 12 V max. 100 mA.
Current regulation ±5 % including temperature variations.

Dimensions 110x76x30 mm. Indoor use.

IP20 independent power supply, for indoor use.

. Protections:
- against overheating and short circuits; - against mains voltage spikes;
- against overloads.
. Thermal protection = C.5.a

Dip-switc selection of the constant output current Variants:

45W (40) 2...43V 1,05 A cost

50W (40) 2...42V 1,2 A cost.

50W (40) 2...36V 1,4 A cost.

50W (40) 2...31V 1,6 A cost.

50W (40) 2...28V 1,75 A cost.

50W (40) 2...23V 2,1 A cost.

TCI
Guaranteed Original Product

Data sheet

Barcode
8056585225958
Reference
127552
Input voltage
100-240 V
Depth in mm
30
Width in mm
76
Length in mm
110
Degree of protection
IP20
Adjustable power
Dimmable
Constant current output
1050~2100mA
Power output in watts
50 w
Insulation class
Insulation class II
Compatible voltage
EU-AUD-USA-UK-JAP
Warranty verified 2-year warranty from date of purchase
