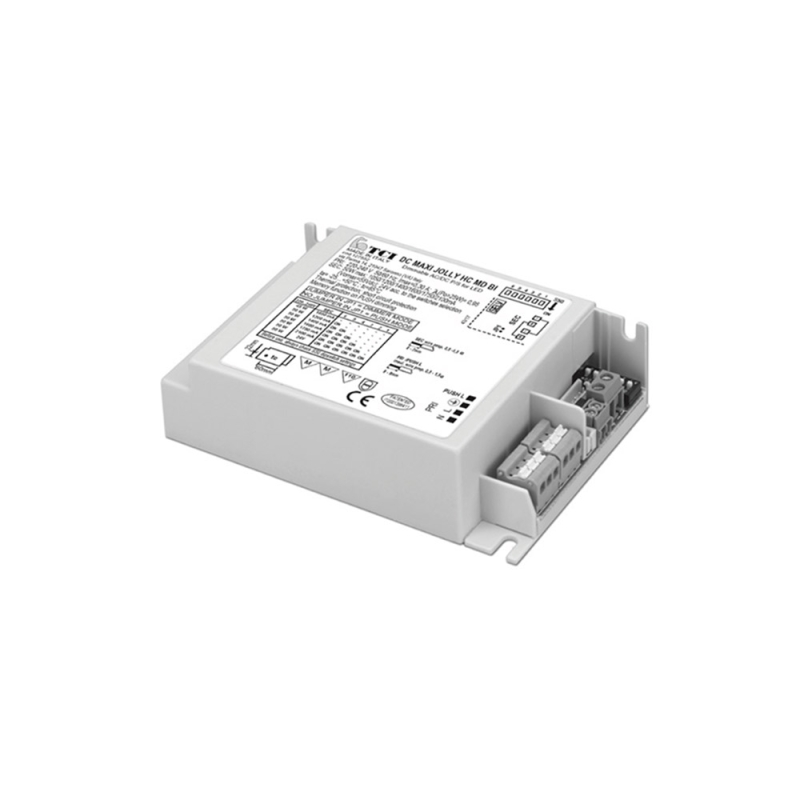

TCI LED Driver DC 50W Maxi Jolly HC MD BI Bilevel Dimmable

Brand :

$133.07 Save 25%

$177.43

The product can be ordered

More buy more save

For 5 products spend per unit

For 10 products spend per unit

Electronic power supply adjustable in direct current. Multi-power power supply equipped with dip-switch with the selection of the output current. Possibility to adjust the light intensity through 1-10V or Push system. Rated voltage 110-127V or 220-240V.

payments Secure payment:

delivery_truck_speed Delivery Information:

Fast shipping within 24-48 hours for products marked "Shipped in 1-2 days."

back_to_tab Product returns:

Returns must be made within 30 days of the delivery date.

Description
Product Details

Description

Multipower driver supplied with dip-switch for the selection of the output current.
Driver for built-in use.
It can be used for lighting equipment in protection class I.
Active Power Factor Corrector.
Analogical input for thermal sensor connection.
Auxiliary output 12 V max. 100 mA.
Current regulation ±5 % including temperature variations.

Dimensions 110x76x30 mm. Indoor use.

IP20 independent power supply, for indoor use.

. Protections:
- against overheating and short circuits; - against mains voltage spikes;
- against overloads.
. Thermal protection = C.5.a

Dip-switc selection of the constant output current Variants:

45W (40) 2...43V 1,05 A cost

50W (40) 2...42V 1,2 A cost.

50W (40) 2...36V 1,4 A cost.

50W (40) 2...31V 1,6 A cost.

50W (40) 2...28V 1,75 A cost.

50W (40) 2...23V 2,1 A cost.

Manufacturer : TCI
