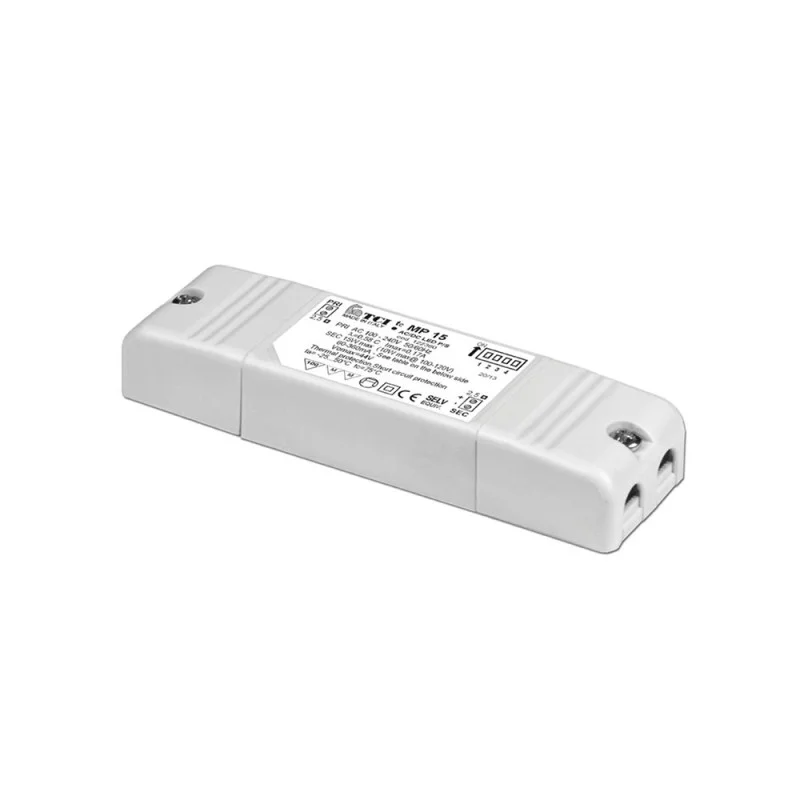

TCI LED Driver 110-240V MP15 15W 60-360mA Multipower

Product Information:

• Multipower driver supplied with dip-switch for the selection of the output current
• IP20 independent driver, for indoor use.
• Class II protection against electric shock for direct or indirect contact.
• Supplied with terminal cover and cable retainer.
• Input and output terminal blocks on opposite sides (wire cross-section up to 2,5 mm2 / AWG13).
• Single terminal block on primary and secondary circuit.
• Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
• Driver can be secured with slot for screws.
• Protections:
• - against overheating and short circuits; - against mains voltage spikes;
• - against overloads.
• Current regulation ±5 % including temperature variations.

Dip-switc selection of the output current Variants:

2,5W (2,5W)  60 mA cost.

3,3W (3,3W)  80 mA cost.

4,1W (4,1W) 100 mA cost.

5,0W (5,0W) 120 mA cost.

5,8W (5,8W) 140 mA cost.

6,6W (6,6W) 160 mA cost.

7,4W (7,4W) 180 mA cost.

8,3W (8,3W) 200 mA cost.

9,1W (9,1W) 220 mA cost.

10W (10W) 240 mA cost.

10.8W (10W) 260 mA cost.

11.6W (10W) 280 mA cost.

12.4W (10W) 300 mA cost.

13.2W (10W) 320 mA cost.

14.1W (10W) 340 mA cost.

15W (10W) 360 mA cost.

* In brackets the power at 100-127V
