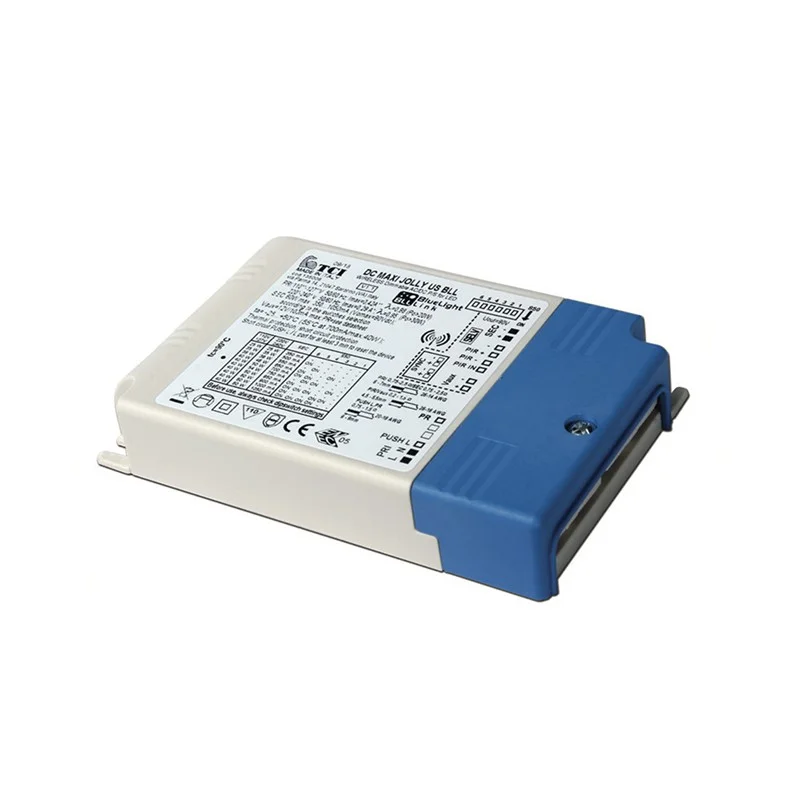

TCI LED Driver MAXI JOLLY US BLL 60W dim

Product Information:

Multipower driver supplied with dip-switch for the selection ofthe output current with integrated wireless BLL module, internal antenna of the wireless module. IP20 independent driver, for indoor use. Class II protection against electric shock for direct or indirect contact. Active Power Factor Corrector. Current regulation ±5 % including temperature variations. Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2 / AWG13). Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm. Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads. Thermal protection = C.5.a.

Operation Mode

Light regulation 0/0,5 - 100 % by means of PUSH function and APP or compatible devices for BLL integrated WIRELESS module.

Motion sensor (PIR) operation:

- PIR allows: ON / OFF / dimming;

- configuration setting by APP (level / delay);

- compatible with HEAT-MAPS functions.

PIR and PUSH operations can control a single LED driver or a group of LED drivers.

Features of remote control by APP:

- turn on and turn off;

- setup and control of groups;

- choice among pre-set scenarios;

- creation of scenarios.

Light regulation 0/0,5 - 100 % by means of PUSH function (mains voltage):

- a short push to turn on and off;

- a longer push to increase or decrease light intensity;

- regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and give the desired command again;

- dimming level memory at mains restore.

Possibility to use PUSH function to 4/5 drivers without sync cable.

Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 110 - 240 Volt mains cable.

ATTENTION: only use normally open push buttons with no incorporated warning light.

Max. 10 synchronised drivers of which only one can be controlled (1 Master + 9 Slaves of any JOLLY Series).

Synchronization cable / PIR supplied separately.

Dip-switc selection of the output current Variants:

25W (25) 2...74V 350 mA cost.

35W (35) 2...72V 500 mA cost.

39W (39) 2...72V 550 mA cost.

46W (40) 2...72V 650 mA cost.

50W (40) 2...72V 700 mA cost.

54W (40) 2...72V 750 mA cost.

60W (40) 2...70V 850 mA cost.

60W (40) 2...66V 900 mA cost.

60W (40) 2...60V 1,00 mA cost.

60W (40) 2...57V 1,05 mA cost.

*In brackets the power in 110/127V
