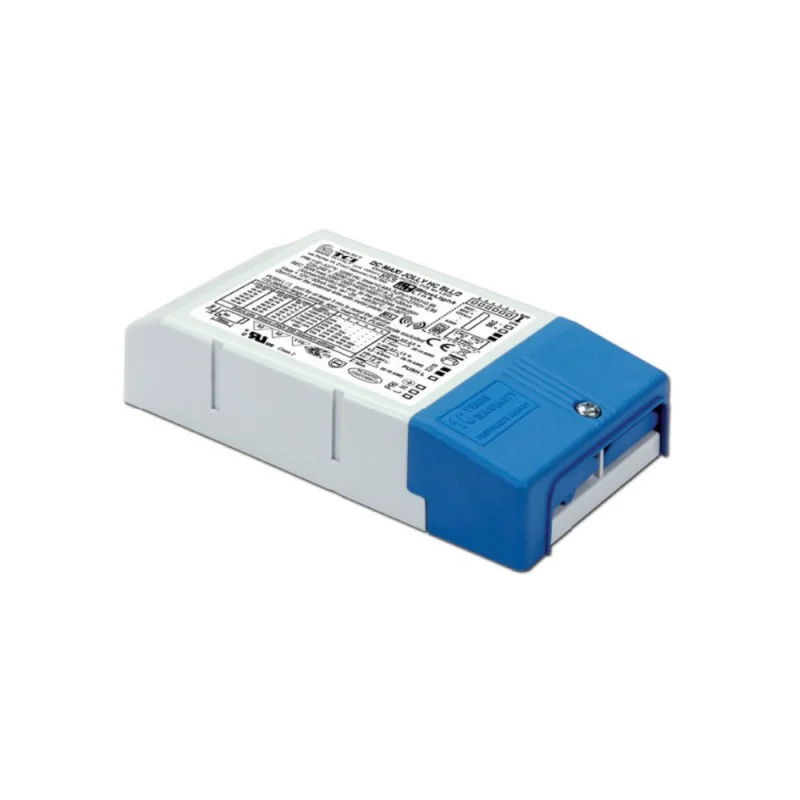

TCI LED Driver MAXI JOLLY HC 60W BLL/2

Product Information:

Features: Multipower driver supplied with dip-switch for the selection of the output current with integrated wireless BLL module. IP20 independent driver, for indoor use (DC MAXI JOLLY HC BLL/2). Class I protection against electric shock for direct or indirect contact (DC MAXI JOLLY HC BLL/2). Driver for built-in use (DC MAXI JOLLY HC BI BLL). It can be used for lighting equipment in protection class I. Active Power Factor Corrector. J50 connection for 12 V auxiliary output. Current regulation ±5 % including temperature variations. Input and output terminal blocks on the same side (wire cross-section up to 1,5 - 2,5 mm2 / AWG15 - AWG13). Clamping screws on primary and secondary circuits for cables with diameter: min. 3 - max. 8 mm (DC MAXI JOLLY HC BLL/2). Protections:against overheating and short circuits; against mains voltage spikes; against overloads. Termal protection = C.5.a.

Operation Mode:Light regulation 0/0,5 - 100 % by means of PUSH function and APP or compatible devices for BLL integrated WIRELESS module.

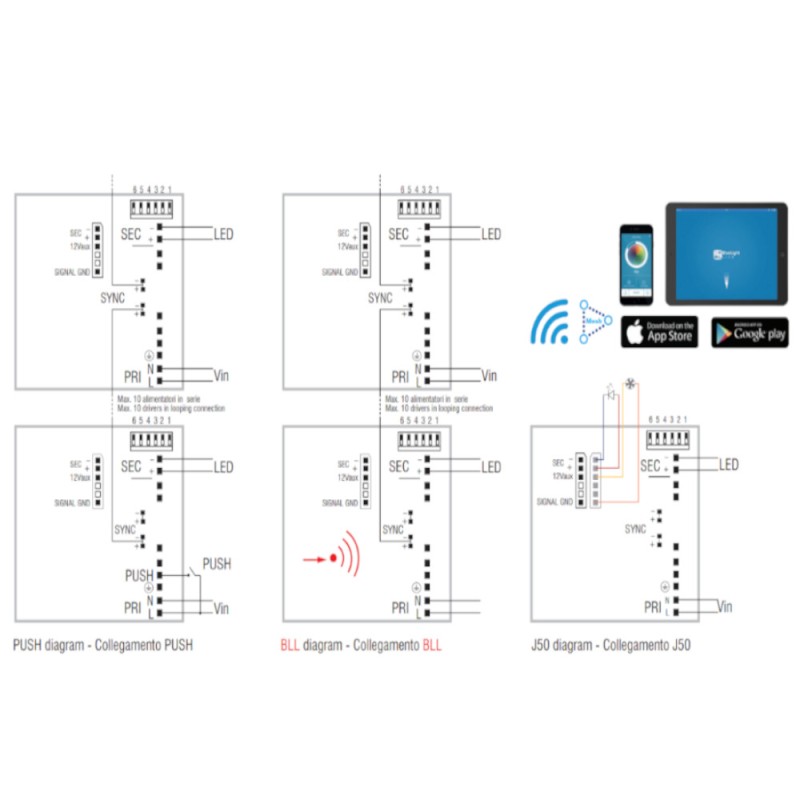

Features of regulation through PUSH function:

-a short push to turn on and off; a longer push to increase or decrease light intensity;

-regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and give the desired command again; dimming level memory at mains restore;

- start/stop plays of light.

Features of remote control by APP:

-turn on and turn off; setup and control of groups;

-choice among pre-set scenarios; creation of scenarios.

Possibility to use PUSH function to 4/5 drivers without sync cable. Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 240 V mains cable. ATTENTION: only use normally open push buttons with no incorporated warning light. Max. 10 synchronised drivers of which only one can be controlled 1 Master + 9 Slaves). Synchronization cable is separately supplied.

45(40)W 2...44V 1.05A

52(40)W 2...44V 1,2A

55/60(40)W 2...43V 1.4A

55/60(40)W 2...38V 1.6A

55/60(40)W 2...35V 1.75A

55/60(40)W 2...29V 2.1A

*In brackets the power in 110/120V

For more information, see the attached PDF.
