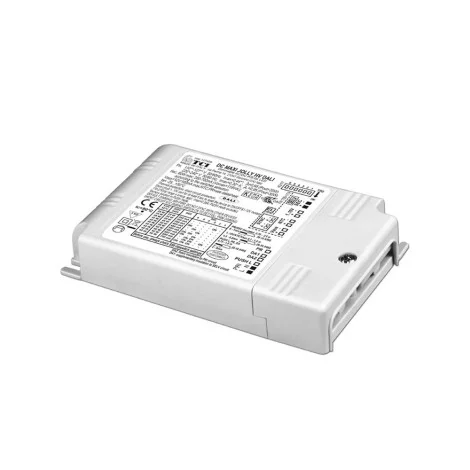

TCI LED Driver 110-240V DC MAXI JOLLY HV DALI 60W 1-10V Push Dimmable

Product Information:

Features
. Multipower driver supplied with dip-switch for the selection of the output current.
. IP20 independent driver, for indoor use
. Class II protection against electric shock for direct or indirect contact .
. Driver for built-in use .
. It can be used for lighting equipment in protection class I and II .
. Active Power Factor Corrector.
. Analogical input (NTC) for thermal sensor connection.
. Auxiliary output 12 V max. 100 mA.
. Current regulation ±5 % including temperature variations.
. Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2 / AWG13).
. Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
. Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
. Thermal protection = C.5.a.

Operation Mode

• Light regulation 0/1 - 100 % by means of PUSH function, 0/1...10 V interface (I=1 mA) or 100 Kohm potentiometer and DALI / DALI-2 (6).
• (4) Default dimming AM+PWM: 1-25% PWM 2 kHz+25-100% AM (NO SYNC).
• (4) Full PWM dimming (240 Hz - 1-100%) for PUSH/1-10V available by short circuit of NTC port during switch on of the driver, without DALI port powered. Same operation to reset to AM+PWM.
• (4) Full PWM dimming (240 Hz - 1-100%) for DALI available by short circuit of NTC port during switch on of the driver, with DALI port powered. Same operation to reset to AM+PWM.
• (5) Full AM DIMMING: 1 - 100%.
• Features DALI / DALI-2 (6) dimming:
• - memory function for sets or light groups;
• - recall of stored functions;
• - compatible with standard DALI interfaces.
• (4) Designed to work with DALI-2 systems.
• Light regulation 0/1 - 100 % by means of PUSH function (mains voltage):
• - a short push to turn on and off;
• - a longer push to increase or decrease light intensity;
• - regulation automatically stops at minimum and maximum values;
• - for another on, regulation or off command, release the push button and give the desired command again;
• - dimming level memory at mains restore.
• Possibility to use PUSH function to 4/5 drivers without sync cable.
• Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 110 - 240 Volt mains cable.
• ATTENTION: only use normally open push buttons with no incorporated warning light.
• Short circuit 1...10V port for at least 5 sec to reset the device to ON/OFF & 0/1-10V modes.
• Specific dimming terminal connection with a 0/1...10 Vdc electronic potentiometer (0/1…10 V local dimming, double insulation required for external connection).
• Max. 10 synchronised drivers of which only one can be controlled
• (1 Master + 9 Slaves of any JOLLY Series). Only for full PWM dimming (4).
• Synchronization cable is separately supplied.

Dip-switc selection of the constant output current Variants:

28W (28) 2...74V 250 mA cost

34W (34) 2...74V 300 mA cost

39W (39) 2...74V 350 mA cost

45W (40) 2...72V 400 mA cost.

50W (40) 2...72V 450 mA cost.

56W (40) 2...72V 500 mA cost.

60W (40) 2...72V 550 mA cost.

60W (40) 2...72V 650 mA cost.

60W (40) 2...72V 700 mA cost.

* In brackets the power at 100-127V
