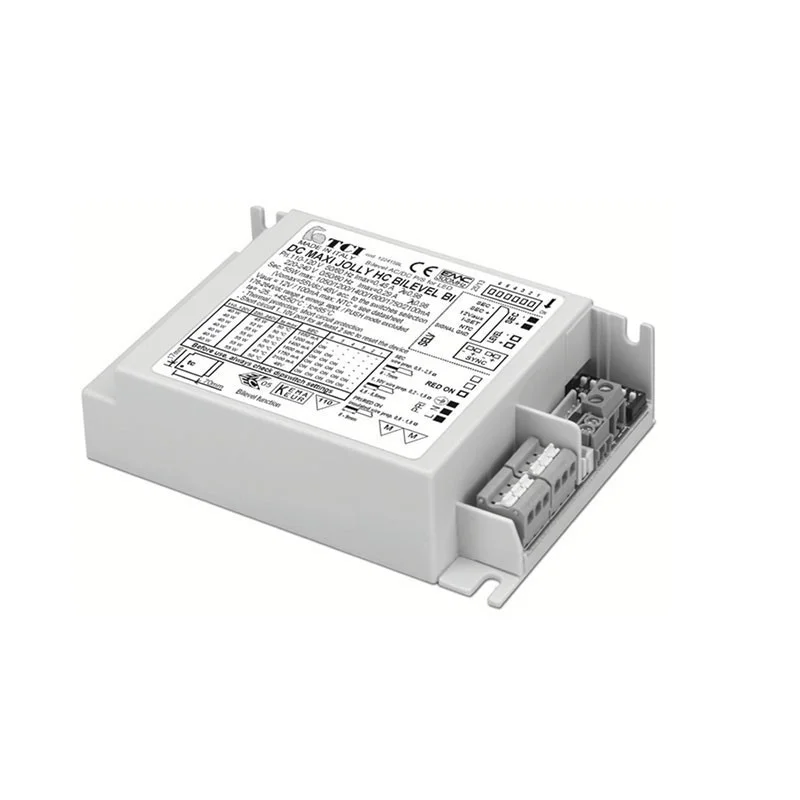

TCI LED Driver DC 55W Maxi Jolly HC Bilevel Dimmable

The TCI LED Driver DC 55W Maxi Jolly HC Bilevel Dimmable (ref. 122415BL) is a multipower constant current LED driver engineered for professional lighting applications. Output current selection via dip-switch allows flexible configuration from 1050 mA up to 2100 mA, with a maximum output power of 55W.

This built-in driver supports a universal input voltage range of 100-240 V, making it compatible with all major electrical standards worldwide (EU, USA, UK, Australia, Japan). The bilevel dimmable function and analogue input for thermal sensor connection make it ideal for advanced lighting control systems.

Key technical features

The driver delivers constant current regulated to ±5% accuracy, including temperature variations, ensuring long-term stability and reliability. It features an Active Power Factor Corrector (PFC) for high power factor performance, an auxiliary output of 12V max 100 mA, and an analogue input for thermal sensor connection. Its compact dimensions — 110 x 76 x 30 mm — simplify integration into luminaires. Insulation class II ensures safe operation without the need for earth connection.

Safety and protections

The TCI Maxi Jolly HC incorporates comprehensive protection: thermal protection (C.5.a), short-circuit protection, protection against mains voltage spikes, and overload protection. The IP20 rating makes it suitable for protected indoor installations.

Applications

Perfectly suited for integration into designer LED luminaires, recessed lighting systems, high-power LED strips, and architectural lighting solutions requiring precise current control and bilevel dimming functionality.
