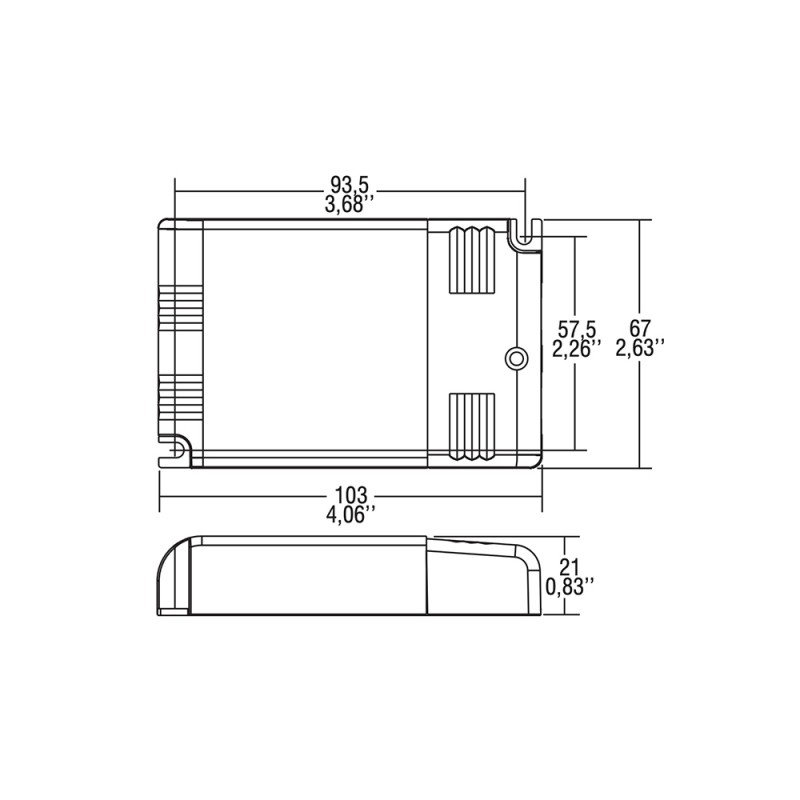

TCI Jolly HC driver led 39W 1.05A 1-10V PUSH dimmable

Product Information:

Characteristics

• Multi-power power supply equipped with dip-switch for selecting the output current and voltage.
• IP20 independent power supply, for internal use (DC JOLLY HC).
• Class II protected against electric shocks for direct and indirect contacts (DC JOLLY HC).
• Power supply to be incorporated (DC JOLLY HC BI).
• Can be used for lighting fixtures in protection class I and II (DC JOLLY HC BI).
• PFC active.
• Regulated current ±5 % including temperature variations.
• Input and output terminals on the same side (cable section up to 1.5-2.5 mm2 / AWG15 - AWG13).
• Strain relief on primary and secondary for diameter cables: min. 3mm - max. 8 mm (DC JOLLY HC).

Protections

• Thermal and short circuit;
• Against network extra-voltages;
• Against overloads.
• Thermal protection = C.5.a.

Operating mode

• Brightness adjustment 0/0.5 - 100 % via PUSH function, interface 0/1...10 V (I=1 mA) or 100 Kohm potentiometer.
• Dimming 0/0.5 - 100 % via the PUSH function (mains voltage L; 170 Kohm):

- a short press to turn it on and off;

- a long press to increase or decrease the light intensity;

- regulation stops automatically at the minimum and maximum values

- for a new on, adjustment or off command, release the button and give the desired command again.

• Possibility of using the PUSH function up to 4/5 power supplies without synchronism cable.
• The maximum length of the cables, from the button to the last transformer, must be max. 15m / 49ft. In case of applications where the cable exceeds 15 m / 49 ft, keep it separate from the 110 - 240 Volt mains cable.
• ATTENTION: use only normally open pushbuttons without built-in pilot light.

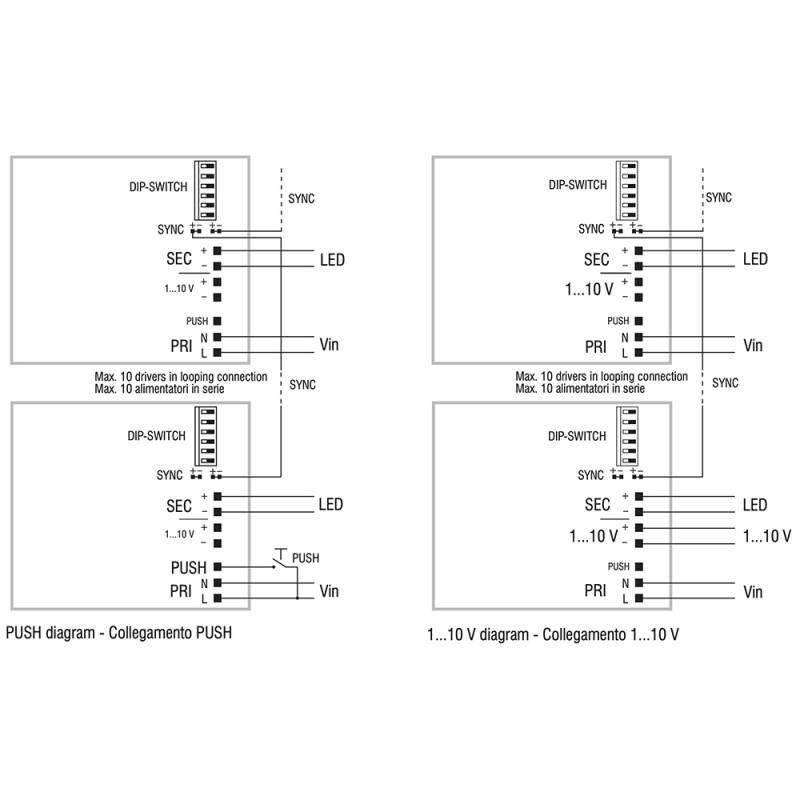

• Provided with specific terminal for regulation by connecting a 0/1...10 Vdc electronic potentiometer (local dimming 0/1...10 V, for connections external to the fixture ensure double insulation).
• Max. 10 synchronized power supplies, of which only one controlled by one or more points (1 Master + 9 Slaves any JOLLY Series driver).
• Sync cable supplied separately.
• DALI and DMX dimming is possible via the DALI/DMX INTERFACE.

- W15 - V2...42 - 350mA const

- W21 - V2...42 - 500mA const.

- W23 - V2...42 - 550 mA const.

- W27 - V2...42 - 650 mA const.

- W29 - V2...42 - 700mA const.

- W31 - V2...42 - 750 mA const.

- W35 - V2...42 - 50mA const.

- W37 - V2...42 - 900mA const.

- W39 - V2...37 - 1.05 A cost.

For more information, see the attached PDF.
