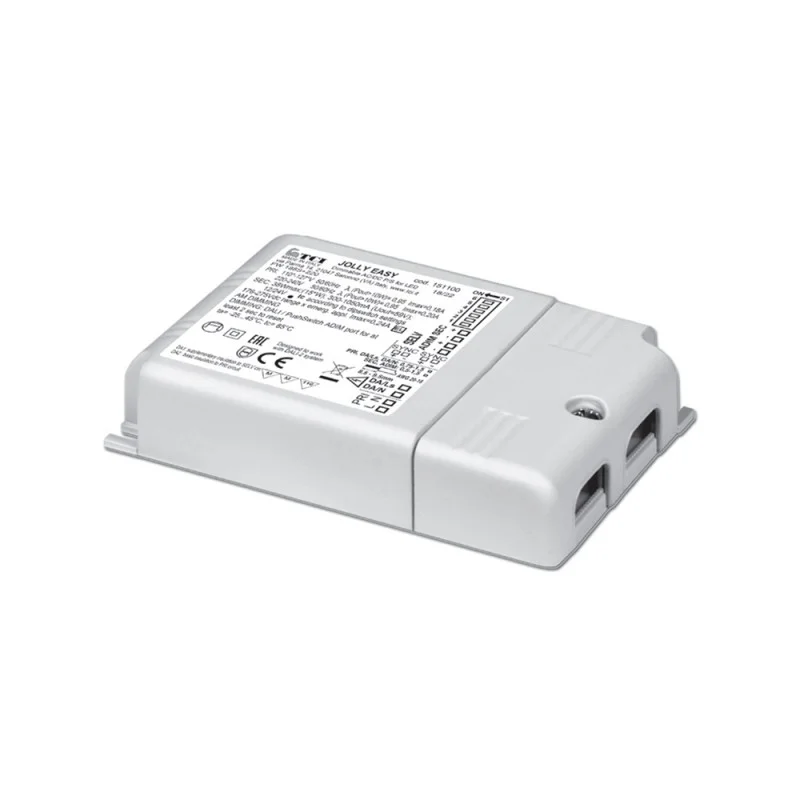

TCI JOLLY EASY DALY driver led dimmable

Product Information:

Characteristics:

• Multipower power supply equipped with DIP-SWITCH for the selection of the output current.
• IP20 independent power supply, for indoor use
• Protected in class II against electric shocks for direct and indirect contacts
• PFC active.
• Regulated current ±5 % including temperature variations.
• Input and output terminals on the same side (cable section up to 1.5 mm2/ AWG15).
• Strain relief on primary and secondary for diameter cables: min. 3mm - max. 8mm

Protections:

• thermal and short circuit;
• against network extra-voltages;
• against overloads.
• thermal protection = C.5.a.

Operating mode

Characteristics of the DALI-2 regulation (0/1 - 100 %, minimum output current 7 mA):

• memory function for scenes or lighting groups;
• recall of memorized functions;
• compatibility with standard DALI interfaces;
• CLO;
• DC EMERGENCY;
• PUSH-SWITCH (enable/disable);
• Setting 0/1-10V.

The dimming is in amplitude.

Max. 10 synchronized feeders, of which only one controlled by one or more points (1 Master + 9 Slaves).

Dimming 0/1 - 100% via the PUSH SWITCH function (mains voltage):

• a short press to turn on and off;
• a long press to increase or decrease the light intensity;
• regulation stops automatically at the minimum and maximum values;
• for a new on, adjustment or off command, release the
• button and give the desired command again;
• restoration of the dimming level when power returns.

Dimming 0/1 - 100 % via local interface 0/1...10 V (I=0.35 mA) or 100 Kohm potentiometer.

The version without terminal covers is also available on request.

Constant current

- 16.2W - V10...54 - 300mA const

- 18.9W - V2...54 - 300mA const.

- 21.6W - V2...54 - 400mA const.

- 24.3W - V2...54 - 450mA const.

- 27W - V2...54 - 500mA const.

- 29.7W - V2...54 - 550 mA const.

- 32.4W - V2...54 - 600mA const.

- 35.1W - V2...54 - 650mA const.

- 37.8W - V2...54 - 700mA const.

- 38W - V2...51 - 750 mA const.

- 38W - V2...48 - 800mA const.

- 38W - V2...45 - 850 mA const.

- 38W - V2...43 - 900mA const.

- 38W - V2...40 - 950 mA const.

- 38W - V2...38 - 1A const.

- 38W - V2...36 - 1.05A const.

Constant voltage

-12W - 12V const - 1.05A max

-25W - 24V const - 1.05A max

For more information, see the attached PDF.
