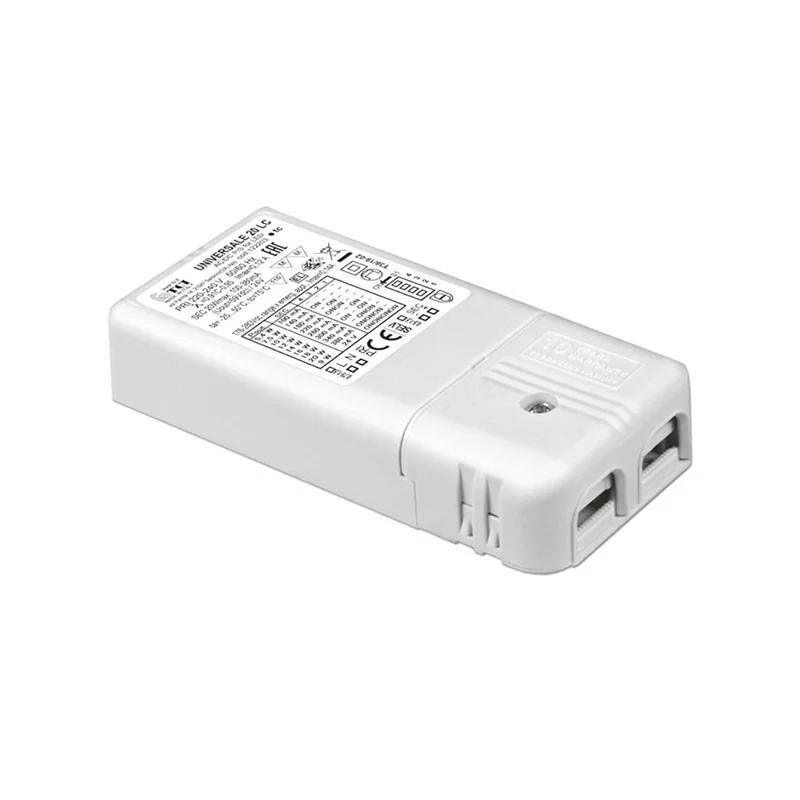

TCI electronic Driver LED 220-240V UNIVERSALE 20 LC 20W Direct current

Product Information:

IP20 independent power supply, for indoor use. Possibility to adjust the direct current between 100mA - 140mA - 180mA- 220mA - 260mA -300mA - 340mA - 380mA - 24V. Rated voltage 220-240V, maximum output power 20W. Dimensions 110x52x23 mm

Features

• Multipower driver supplied with dip-switch for the selection of the output current.
• IP20 independent driver, for indoor use .
• Class II protection against electric shock for direct or indirect contact.
• Driver for built-in use.
• It can be used for lighting equipment in protection class I and II.
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Supplied with terminal cover and cable retainer.
• Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: PRI 5-8 mm / SEC 3-5 mm
• Driver can be secured with slot for screws.
• Protections:
• - against overheating and short circuits;
• - against mains voltage spikes;
• - against overloads.
• Thermal protection = C.5.a.
• Double output impedance for use in household electrical appliances.

Selection of constant output current via dip-switch Variants:

5,4W 20...54 100 mA cost.

7,5W 10...54 140 mA cost.

10W 2...54 180 mA cost.

12W 2...54 220 mA cost.

14W 2...54 260 mA cost.

16W 2...54 300 mA cost.

18W 2...54 340 mA cost.

20W 2...54 380 mA cost.

9W 24 cost. 380 mA max.
