TCI driver LED 220-240V UNIVERSALE 20 20W

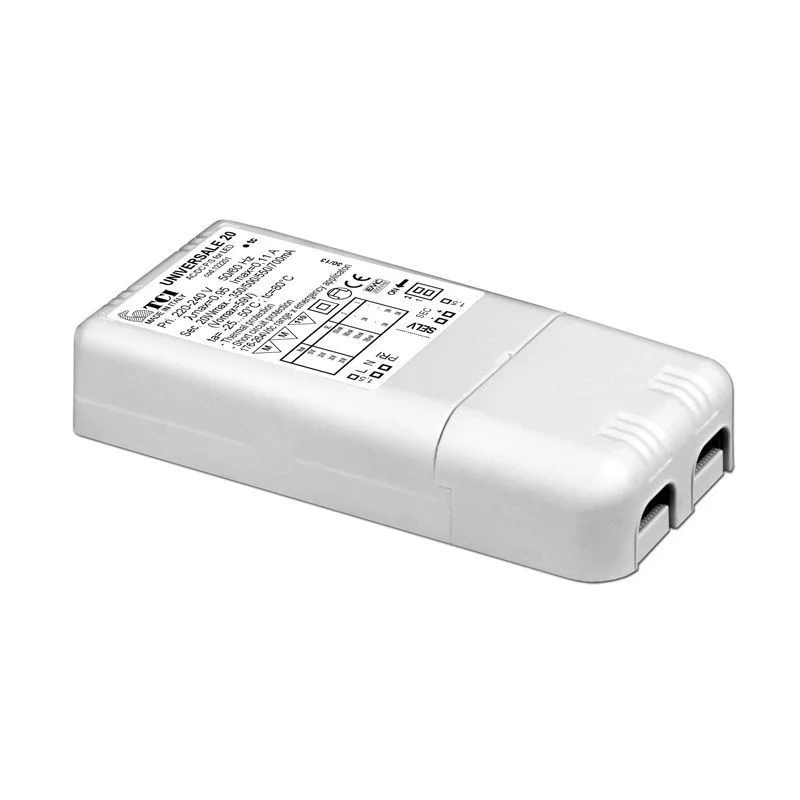

The TCI UNIVERSALE 20 LED driver is a 20W constant current LED power supply designed for professional indoor lighting installations. Manufactured by TCI, a leading brand in lighting electronics, model 122201 operates at an input voltage of 220-240V and allows output current selection via dip-switch, making it a highly versatile solution for lighting designers and installers.

Thanks to its multi-power design, this driver adapts to multiple installation configurations, supporting both constant current mode from 250 to 700mA and constant voltage 24V mode, offering maximum flexibility during design and installation.

Main technical features

The driver delivers a maximum output power of 20W with selectable output current between 250mA and 700mA across nine dip-switch configurations, with output voltages ranging from 29V to 54V depending on the selected current. Current regulation is guaranteed within ±5%, including temperature variations, ensuring stable and precise power delivery. The compact dimensions of 110 x 52 x 22 mm in PVC material facilitate integration into luminaires. Input and output terminals are located on the same side, with cable cross-section up to 1.5 mm² (AWG15). The driver features active PFC and double output impedance for use in household electrical appliances.

Safety and protections

The TCI UNIVERSALE 20 is rated IP20 for indoor use and belongs to Insulation Class II, providing protection against both direct and indirect electrical contact. The device integrates protections against overheating and short circuits, mains voltage spikes and overloads, with thermal protection compliant with standard C.5.a. Compatible with lighting equipment in protection class I and II.

Applications

Ideal for powering LED strips, LED modules and design lighting fixtures for recessed or built-in installation, in residential and commercial environments. The dip-switch versatility makes it well suited for lighting design studios, showrooms and bespoke installations requiring flexible current management.
