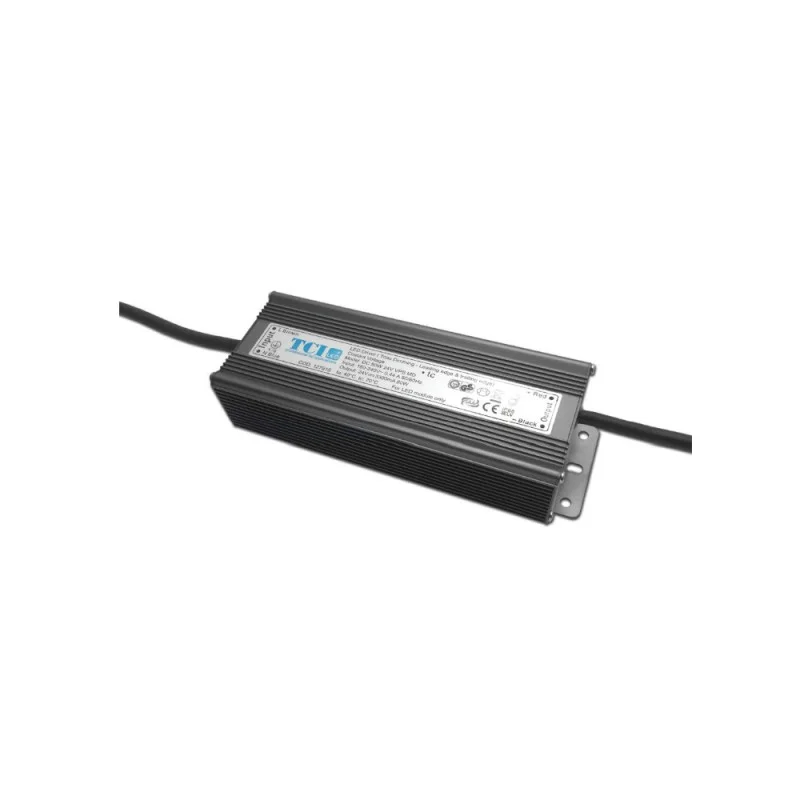

TCI Driver LED VPS MD 80W 3.3A IP66 Dim

The TCI LED Driver VPS MD 80W 3.3A IP66 Dim is a dimmable electronic driver with voltage output designed for LED modules, engineered for professional installations requiring reliable performance and precise light control.

With its IP66 rating, this driver is suitable for both indoor and outdoor use, ensuring consistent operation even in environments exposed to dust and water jets. The IGBT and TRIAC phase-cut dimming function allows smooth and accurate regulation of the LED load, with a recommended operating range between 60% and 100%.

Main technical features

The driver operates at an input voltage of 220-240V, delivering an output current of 3.3A at a maximum power of 80W. The metal housing ensures durability and optimal heat dissipation. The compact dimensions of 200 x 70 x 46 mm simplify installation even in confined spaces. The unit is supplied with cables on both primary and secondary circuits for immediate connection.

Safety and protections

The TCI VPS MD driver features Class I protection against electric shock for both direct and indirect contact. It incorporates protections against overheating, short circuits, mains voltage spikes, and overloads, with thermal protection class C.5.a. If the input cable is damaged, replacement must be carried out by authorised personnel only.

Applications

This LED driver is ideal for architectural lighting, outdoor installations, and LED signage, as well as any application requiring a reliable dimmable driver in demanding environments.
