TCI Driver LED VPS 200W 24V IP66 dim

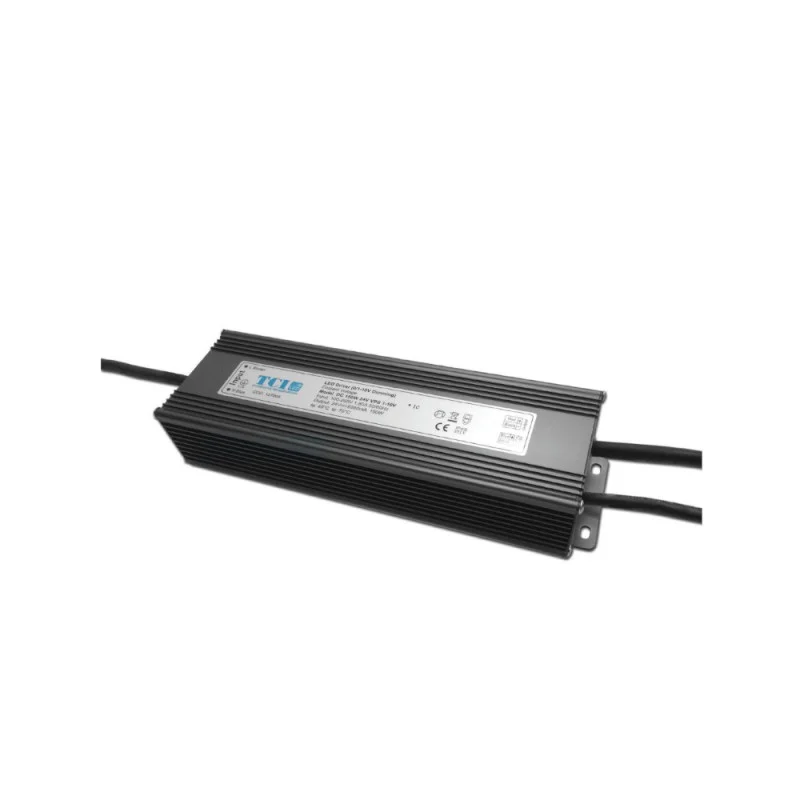

The TCI LED Driver VPS 200W 24V IP66 dimmable is an electronic constant-voltage driver designed to power LED modules and strips in both indoor and outdoor environments. Its metal housing with IP66 protection rating ensures reliable performance even in harsh weather conditions.

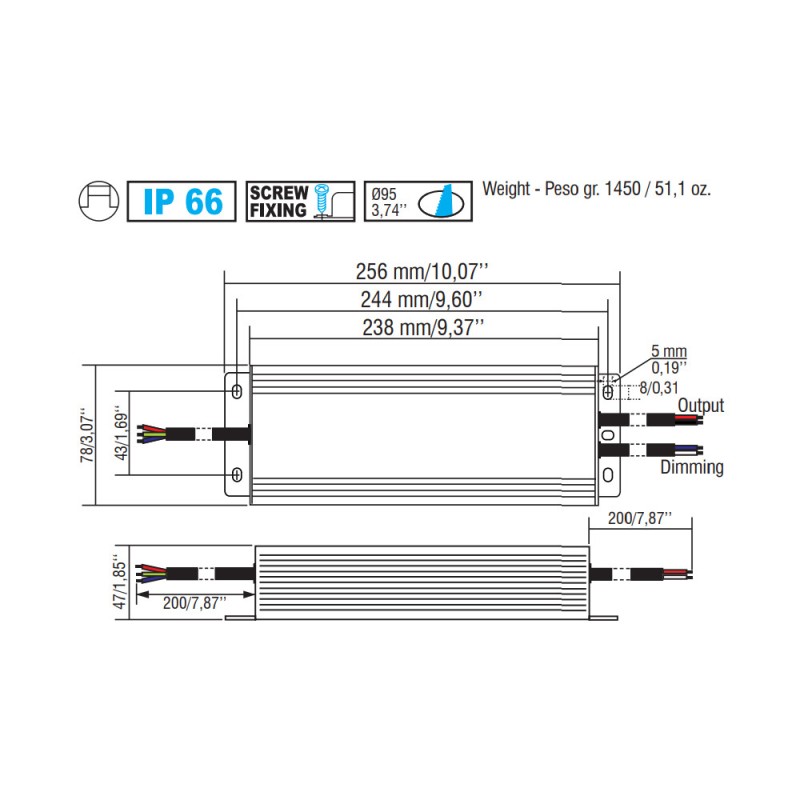

With its compact dimensions of 256x78x47 mm, the TCI VPS 200W is the ideal solution for professional lighting installations requiring precise dimming control and full compatibility with automation and building management systems.

Key Technical Features

The driver delivers 200W at 24V with an output current of up to 8.5A, distributed across both output terminals. The integrated dimming function allows brightness adjustment from 1 to 100% via a 1...10V interface (I < 0.35 mA), a 600 Kohm potentiometer or a PWM 10V signal (100Hz...3KHz). It is supplied with connecting leads on both primary and secondary sides, including a dedicated dimming cable for a 0/1...10 Vdc electronic potentiometer.

Safety and Protections

The driver is rated Class I for protection against electric shock from direct and indirect contact. The IP66-rated enclosure provides complete protection against dust ingress and powerful water jets, while built-in protections against mains voltage spikes ensure long-term system reliability. Switching off occurs on the primary side (L-N) only.

Applications

Ideal for architectural lighting, LED signage, outdoor lighting, and commercial or residential installations requiring a robust, weatherproof and dimmable 24V LED driver.
