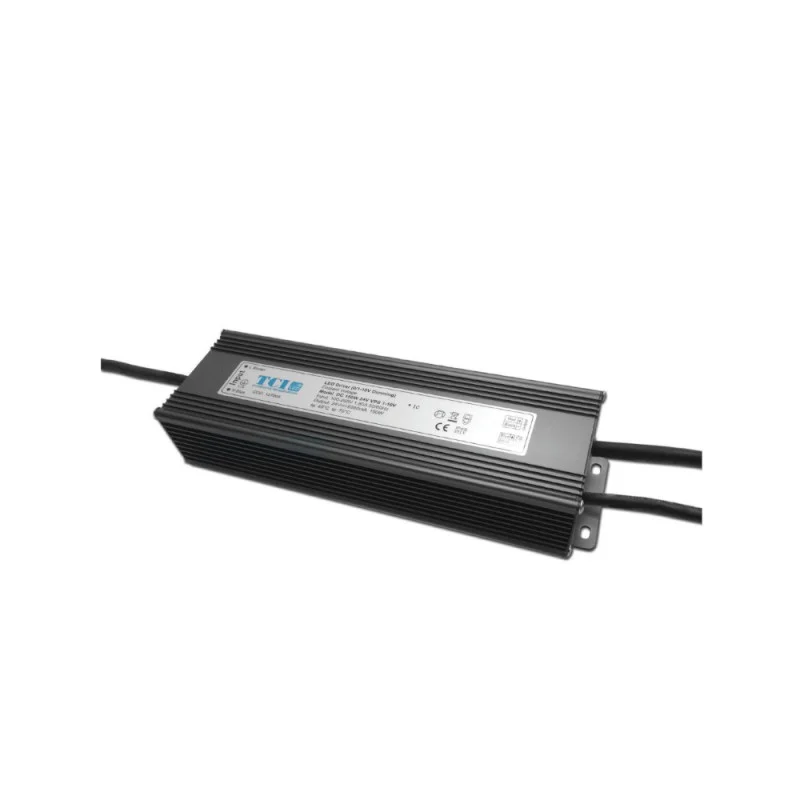

TCI Driver LED VPS 150W 48V IP66 Dim

The TCI LED Driver VPS 150W 48V IP66 Dimmable is an electronic constant-voltage driver designed to power LED modules in professional lighting applications. With a rated power of 150W and an output voltage of 48V DC, it delivers reliable performance and precise dimming control.

Thanks to its IP66-rated robust metal enclosure, this TCI driver is fully suited for both indoor and outdoor installations, providing complete protection against dust and powerful water jets.

Key Technical Features

The driver operates at a nominal power of 150W with a 48V DC output and compact dimensions of 256 x 78 x 47 mm. Brightness adjustment from 1 to 100% is achieved via a 1...10V interface (I < 0.35 mA), a 600 kΩ potentiometer, or a 10V PWM signal (100 Hz...3 kHz). The LED load must be distributed across both output terminals to ensure optimal operation.

Safety and Protection

The driver is Class I rated for protection against electric shock, covering both direct and indirect contact. It also features mains overvoltage protection and is supplied with connection leads on both primary and secondary circuits. Switching off is performed exclusively on the primary side (L-N).

Applications

This TCI driver is designed for 48V LED lighting installations in architectural, industrial, and outdoor environments where high environmental protection and precise dimming control are essential.

For full technical specifications and installation guidelines, please refer to the attached technical PDF.
