TCI Driver LED VPS 1-10V 150W 24V IP66 Dimmable

TCI Driver LED VPS 150W 24V IP66 Dim

Brand :

$273.96 Save 25%

$365.27

24 / 48 hours

More buy more save

For 5 products spend per unit

For 10 products spend per unit

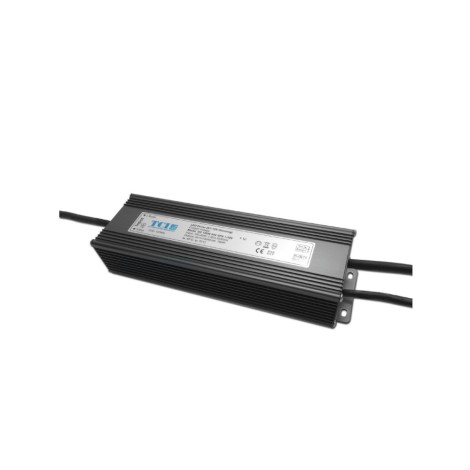

TCI VPS adjustable direct current electronic ballast with voltage output for independent LED modules for indoor and outdoor use IP66 from 150W at 6.25A at 24v.

payments Secure payment:

delivery_truck_speed Delivery Information:

Fast shipping within 24-48 hours for products marked "Shipped in 1-2 days."

back_to_tab Product returns:

Returns must be made within 30 days of the delivery date.

Description
Product Details

Description

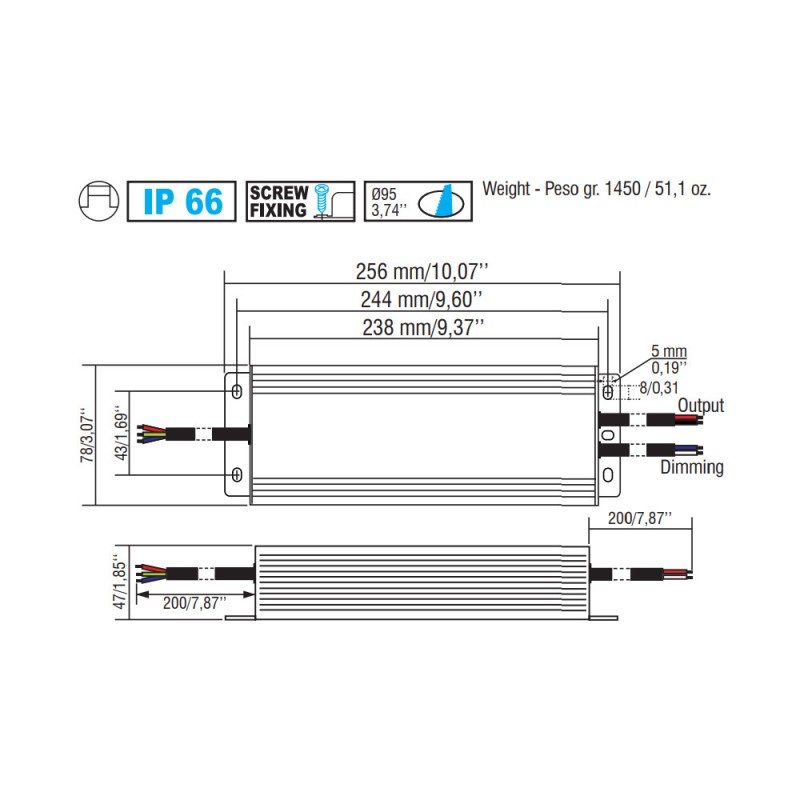

Brightness adjustment 1- 100% via 1...10 V interface (I < 0 ,35 mA), 600 Kohm potentiometer or 10 V PWM signal (100Hz...3KHz). Dimensions: 256x78x47mm

Features

Dimmable electronic driver with output voltage for LED modules.

Independent driver with case IP66.

Class I protection against electric shock for direct or indirect contact.

Supplied with connecting leads on primary and secondary circuits for connection.

If the input cable is damaged it can only be replaced by authorized personnel.

Protections against mains voltage spikes.

Operation Mode

Switching off only on primary side (L-N).

Light regulation 1- 100 % by means of 1...10 V interface (I < 0,35 mA), 600 Kohm potentiometer or 10 V PWM signal (100Hz...3KHz).

Specific dimming cable for 0/1...10 Vdc electronic potentiometer (0/1...10 V local dimming, double insulation required for external connection).

LED load must be distributed on both output terminal block.

For more information, see the attached PDF

Manufacturer : TCI

check_circle

In stock

In store we have 3 Items

Data sheet :

Barcode: 8010703371446
Reference: 127909
Depth in mm: 47
Width in mm: 78
Length in mm: 256
Degree of protection: IP66
Material: Metal
Light source: LED
Adjustable power: Dimmable
Light output in watts: 150 w

Download :

attach_file Download

Warranty :

2-year warranty from date of purchase
